RC4WD Gelande II RTR Scale 4WD Crawler w/Cruiser Body Set & 2.4GHz Radio

This is the RC4WD Gelande II RTR Scale Crawler Chassis with Scale Cruiser Body Set. This RTR vehicle comes factory assembled, with installed electronics and a 2.4GHz Transmitter. Add your own 2S/3S LiPo battery and battery charger and go crawl.
The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the all new Yota II axles. The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance. The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast! The Scale Details

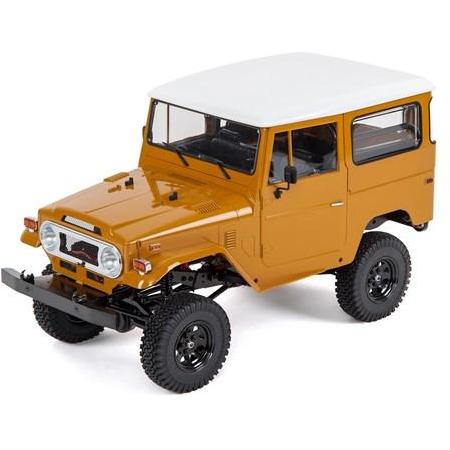

The G2 features the Cruiser Scale Body Set. The Cruiser Body has an awesome assortment of scale details including mirrors, door handles, vents and a grill to match the 1:1 real vehicle. The Cruiser Body Set feature the unmistakable lines of a classic. It is an exact replica of the full scale vehicle, right down to the removable top! No other scale body comes this close to realism. The Cruiser Body Set comes in durable, molded hard plastic that is professionally painted in Mustard Yellow. All the trim parts are separate pieces to get a great look with minimal fuss. Comprised of over 70 parts, the Cruiser Body Set features a full detailed interior, seats, gear shifter, handbrake and a detailed dashboard. It's all here to bring your build to next level. The crisp lines and subtle details are captured. Metal grill insert is included along with detailed lenses for all signal lights. All lamps can be illuminated with an optional RC4WD LED light kit. Features:
Custom Designed for True to Scale Looks

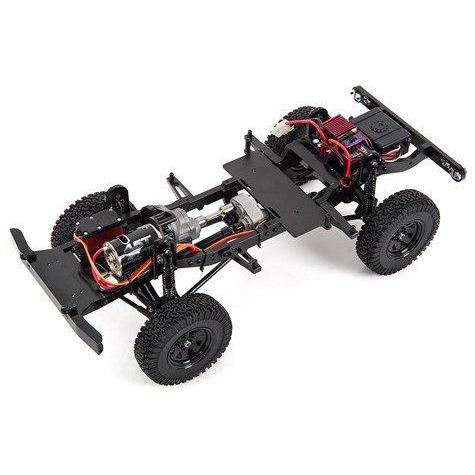

Realistic Aluminum Ladder Frame Chassis
R3 Single Speed Transmission
Center Mounted Realistic 4X4 Transfer Case
Cast Metal Axles With Locked Differentials
3 Link Front and 4 Link Rear Suspension
1.9" Stamped Steel Beadlocks w/Lug Nuts
Super Grip Dirt Grabber Tires
Chassis Mounted Steering Servo
Plastic Fuel Cell Receiver Box
Dual Spring Oil Filled Shock Absorbers
Specifications:
Hammer Transfer Case:
Ratio: 1.47:1
Gears: Wide 32P Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Single Speed Transmission:
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears: Wide Steel 32P, Delrin Spur, Slipper Clutch
Cast Yota II Axles:
Ratio: 15/40 = 2.67:1
Width at Hex: 180.5mm
G2 Suspension:
Front: 3 Link Suspension with Panhard Bar
Rear: Double Triangulated 4 Link Rear Suspension
Shock Absorbers:
Dual Spring 80mm Shocks - Can be Oil Filled
Wheels
Type: 1.9'' 5 Lug Wagon Wheels
Hub: Pin Type Width: 25mm
Back Spacing: 11mm
Bumpers:
Material: Machined Billet Aluminum, Lightweight
G2 Truck Dimensions
Wheels Base: 10.83in / 275mm
Length: 18.35in / 466mm
Width: 8.5in / 215mm
Height: 10.6in / 270mm
Ground Clearance: 2.3in / 420mm
Final Drive Ratio: 31.9:1
Weight: 8.02 Lbs / 3.64Kg
Includes: Gelande II RTR w/Cruiser Body
XR3 3-Channel 2.4GHz Transmitter/Receiver
540 Brushed Motor (45T)
Outcry Speed Controller w/TurboBEC
Twister High Torque Metal Gear Digital Servo
Needed To Complete: 6-Cell 7.2V NiMH battery or 2S 7.4V / 3S 11.1V LiPo Battery w/Tamiya connector
Compatible battery charger
Notes: The RC4WD Outcry ESC included with this RTR does not have a LiPo. Use LiPo batteries with caution.
While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.
