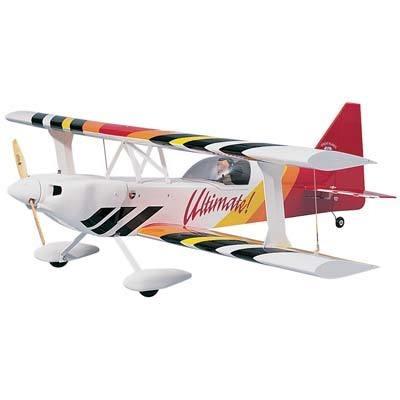

GPMA0240 Ultimate Biplane 40 Kit .40-.46,43.4"

GPMA0240 Ultimate Biplane 40 Kit .40-.46,43.4".
FEATURES
Constructed of die-cut balsa and plywood
Plug-in struts and pre-bent aluminum cabanes
Fully-symmetrical airfoil, removable wings
ABS cowl and wheel pants are precision-formed for scale appearance
INCLUDES
Aluminum landing gear, clear canopy, ABS cowl and wheel pants,
adjustable nylon engine mount, hardware package, rolled plans,
instructions, and all balsa and plywood to build the kit.
SPECIFICATIONS
Wingspan: 43.375" Wing Area: 742 sq in Length: 47.75"
Wing Loading: 17-20oz/sq ft Weight: 5.5-6.5lbs
CG: 2-3/8" back on lower wing with model suspended inverted
Throws: Elev 5/8" hi 7/16" low Rudder 1¼"
Aileron ¼" hi 3/16" low
REQUIREMENTS
4-channel radio with 4 servos
.40-.46 (2-stroke) or .48-.70 (4-stroke) engine
In-cowl muffler (not required, but strongly suggested)
10oz fuel tank and fuel tubing
2½" spinner
2¼" main wheels and 1" tailwheel
Building and starting equipment
3 rolls of covering and paint (for cowl and wheel pants)
COMMENTS
DECALS: (1) ULT4D01 and (1) ULT4D02 are only available from Great
Planes Manufacturing.
ULT4D01--(2) 9" L x 3" H Red and Black Ultimate logo
(2) 3" L x ¾" H White, Red and Black GREAT PLANES logo
(2) ¾" L X ¾" H White, Red and Black GPAT logo
(2) 3" L x 2¼" H White, Red and Black GPAT (Great Planes
Aerobatic Team) logo.
ULT4D02--(1) 18½" L x 6¼" H Black and White Ultimate logo
