GPMA1019 Revolver Sport Aerobatic .61-.75/EP ARF 70

GPMA1019 Revolver Sport Aerobatic .61-.75/EP ARF 70. The Bigger, Better Revolver!
It's true: bigger is better. The bold, sleek looks and pilot-friendly handling of the mid-size Revolver is now available in .60 size. It's more impressive in the air, easier to track in the sky and less affected by wind – and that's not all. It's a great choice for everything from simple sport flying to air show aerobatics – and capable of bigger, better performance with either glow or electric power!
Impressive size and traditional trim scheme are easy to track and see in most flight conditions.

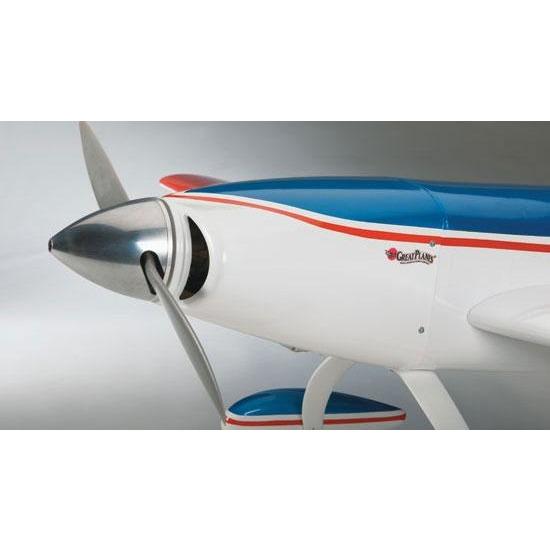

The fiberglass cowl, wheel pants and landing gear are painted to match the trim scheme.

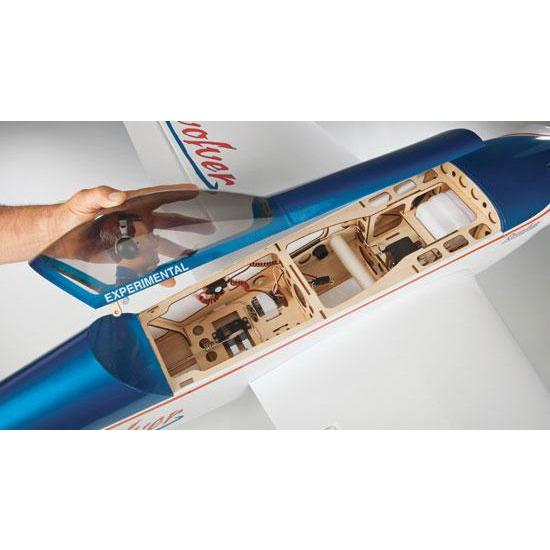

A built-up balsa/ply fuselage and a low parts count speed up final assembly time. FEATURES
Construction: Balsa and ply
Wings: Two piece, foam core balsa sheeted, carbon fiber wing tube
Cowl: Painted fiberglass
Covering: Top Flite MonoKote
Radio Compartment: Plywood reinforced
Landing Gear: Pre-formed composite, 0.08" (2mm) diameter tail wheel
wire
Wheels: Foam, two main 3-1/4" (83mm) diameter, one 1-1/4" (32mm) tail
wheel
Wheel Pants: Painted and constructed of fiberglass
Spinner: 3-1/4" (83mm) diameter aluminum
Canopy: Vacuum formed, tinted
Aileron Control: Dual servo
Tail Group: Airfoil shaped tail surfaces for better tracking
Fuel Tank: 14.2oz (420cc)
Engine Mount: Two-piece composite construction
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship
at the date of purchase. This warranty does not cover any
component parts damaged by use or modification.

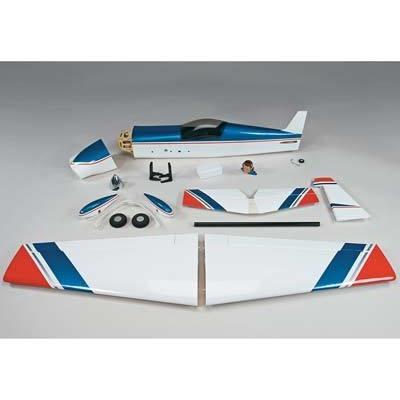

INCLUDES
Pre-built and covered wings, fuselage and tail assemblies, pushrods,
pre-bent main landing gear, main and tail wheels, wood servo trays,
two wheel pants, fiberglass cowl, hardware package, engine mount,
pilot bust, fuel tank, photo-illustrated instructions and decal
sheet
REQUIREMENTS
Radio: 4-ch minimum
Servos: Five 50 oz.-in. (3.6 kg-cm) minimum standard torque
6" (152mm) Servo Extensions: Two for aileron servos
Glow Power-
Engine .61-.75 (10-12.5 cc) two stroke OR .81-.91 (13.5-15 cc) four
stroke with Pitts type muffler OR
Electric Power-
Motor: Outrunner brushless, GPMG4740 with Motor Mount, GPMG1260 and
60A Brushless ESC, GPMM1850
Battery: Two 3200mAh 11.1V LiPo with Deans Universal 2 to 1 adapter
Battery Charger: LiPo compatible
Cell Balancer:
Propeller: Glow, size depending on selected engine
Electric, 15x7E (APCQ1830)
Misc. Items: Building and field equipment
SPECIFICATIONS
Wingspan: 70" (1780mm)
Wing Area: 832 sq in (53.7 sq dm)
Wing Loading: 24 - 26 oz/sq ft (73 - 79 g/sq dm)
Weight: 8.5 - 9.25lb (3850 - 4190g)
Airfoil: Semi-symmetrical
Center of Gravity: 5.5" (139.7mm) Back from the leading edge of the
wing at the fuselage
Control Throws: Low Rate High Rate
Elevator: Up & Down, 5/16" (8mm) 5° 3/4" (19mm) 10°
Rudder: Right to Left, 1-1/2" (38mm) 13° 2-1/2" (64mm) 22°
Ailerons: Up & Down, 1/4" (6mm) 6° 1/2" (13mm) 12°
COMMENTS
Following are the Top Flite MonoKote colors used to cover this model
and order numbers for 6ft rolls;
Missile Red TOPQ0201 Aluminum TOPQ0205
White TOPQ0204 Metallic Blue TOPQ0402
If a replacement fuel tank is needed, order the Sullivan 14oz Slant
Type Flextank (SULQ1742), or the DuBro 14oz tank (DUBQ0214).
Some minor trimming and modifications may be required.
