GPMA1188 Extra 300SP EP ARF 50"
Regular price
$179.99 USD
Regular price
$249.99 USD
Sale price
$179.99 USD
Unit price
per
Couldn't load pickup availability
GPMA1188 Extra 300SP EP ARF 50". A standout aerobatic “hot rod.”
A favorite at airshows and competitions around the world, the Extra is a contemporary aerobatic airplane with graceful lines and the ability to execute a wide envelope of thrilling maneuvers. Great Planes has replicated the 300SP in both looks and performance, and final assembly is easy and straightforward. The modelÕs colorful appearance is truly eye-catching, and its aerobatic potential is impressive — including 3D action when equipped with a 4S LiPo battery!
Strong, lightweight design.
Painted fiberglass parts.

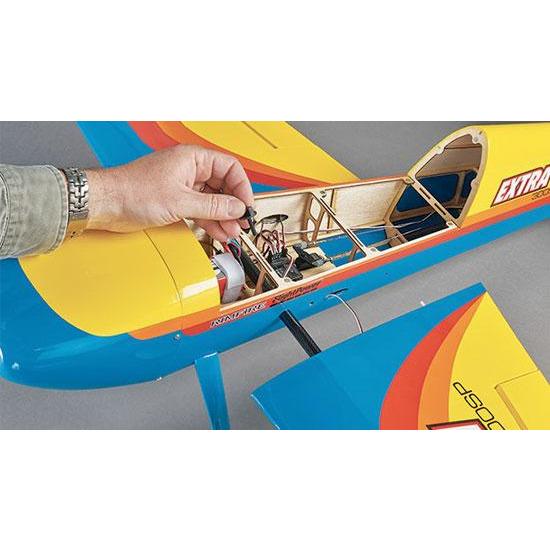

Large battery hatch.
Removable wing panels. FEATURES
Construction: Balsa and ply
Covering: Top Flite MonoKote
Wing: Two-piece with carbon fiber joiner
Aileron Control: Dual servo
Cowl: Painted fiberglass
Hatch: Secures to fuselage with magnets
Spinner: Blue plastic 2.5" (63.5mm) diameter
Motor Mount: Assembled plywood
Landing Gear: Prebent aluminum, 2" (51mm) diameter foam main wheels
1" (25.4mm) foam tail wheel
Wheel Pants: Painted fiberglass
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover any component
parts damaged by use or modification.
INCLUDES
ARF Extra 300SP with Spinner, two Main Wheels, one Tail Wheel,
Landing Gear, Wheel Pants, Decals and Instructions
REQUIREMENTS
Radio: 4-ch minimum, or 5-ch w/mixing capabilities
Servos: Four slim digital, or four micro precision size
(2-aileron, 1-rudder, 1-elevator)
Y Harness: One
16" Servo Extensions: Three
9" Servo Extension: One
Motor: Great Planes RimFire .32 (42-50-800)
Propeller: 13x8E if using motor listed above
Electronic Speed Control: 45A
Battery: 3S - 4S LiPo
Battery Charger: To match selected battery
Building and field equipment
SPECIFICATIONS
Wingspan: 50" (1270mm)
Wing Area: 478 sq in (30.8 sq dm)
Wing Loading: 16 - 19oz sq/ft (46 - 49g sq dm)
Length: 47.8" (1215mm)
Weight: 3.5 - 4.0lbs (1590 - 1810g)
Center of Gravity (CG): 3" (76mm) back from the leading edge of the
wing at the sides of the fuselage
Control Throws; Low High 3D
Elevator: 3/8 (10mm) 7° 5/8" (16mm) 11° 2" (51mm) 38°
Aileron: 3/8 (10mm) 9° 5/8" (16mm) 14° 1" (25mm) 24°
Rudder: 1-1/4" (32mm) 12° 1-7/8" (48mm) 18° 3-1/2" (89mm) 35°
COMMENTS
Following are the colors of Top Flite MonoKote used to cover this
model and order numbers for 6' rolls;
Yellow, TOPQ0203 Orange, TOPQ0202
Royal Blue, TOPQ0221 Missile Red, TOPQ0201
A favorite at airshows and competitions around the world, the Extra is a contemporary aerobatic airplane with graceful lines and the ability to execute a wide envelope of thrilling maneuvers. Great Planes has replicated the 300SP in both looks and performance, and final assembly is easy and straightforward. The modelÕs colorful appearance is truly eye-catching, and its aerobatic potential is impressive — including 3D action when equipped with a 4S LiPo battery!
Strong, lightweight design.
Painted fiberglass parts.
Large battery hatch.
Removable wing panels. FEATURES
Construction: Balsa and ply
Covering: Top Flite MonoKote
Wing: Two-piece with carbon fiber joiner
Aileron Control: Dual servo
Cowl: Painted fiberglass
Hatch: Secures to fuselage with magnets
Spinner: Blue plastic 2.5" (63.5mm) diameter
Motor Mount: Assembled plywood
Landing Gear: Prebent aluminum, 2" (51mm) diameter foam main wheels
1" (25.4mm) foam tail wheel
Wheel Pants: Painted fiberglass
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover any component
parts damaged by use or modification.
INCLUDES
ARF Extra 300SP with Spinner, two Main Wheels, one Tail Wheel,
Landing Gear, Wheel Pants, Decals and Instructions
REQUIREMENTS
Radio: 4-ch minimum, or 5-ch w/mixing capabilities
Servos: Four slim digital, or four micro precision size
(2-aileron, 1-rudder, 1-elevator)
Y Harness: One
16" Servo Extensions: Three
9" Servo Extension: One
Motor: Great Planes RimFire .32 (42-50-800)
Propeller: 13x8E if using motor listed above
Electronic Speed Control: 45A
Battery: 3S - 4S LiPo
Battery Charger: To match selected battery
Building and field equipment
SPECIFICATIONS
Wingspan: 50" (1270mm)
Wing Area: 478 sq in (30.8 sq dm)
Wing Loading: 16 - 19oz sq/ft (46 - 49g sq dm)
Length: 47.8" (1215mm)
Weight: 3.5 - 4.0lbs (1590 - 1810g)
Center of Gravity (CG): 3" (76mm) back from the leading edge of the
wing at the sides of the fuselage
Control Throws; Low High 3D
Elevator: 3/8 (10mm) 7° 5/8" (16mm) 11° 2" (51mm) 38°
Aileron: 3/8 (10mm) 9° 5/8" (16mm) 14° 1" (25mm) 24°
Rudder: 1-1/4" (32mm) 12° 1-7/8" (48mm) 18° 3-1/2" (89mm) 35°
COMMENTS
Following are the colors of Top Flite MonoKote used to cover this
model and order numbers for 6' rolls;
Yellow, TOPQ0203 Orange, TOPQ0202
Royal Blue, TOPQ0221 Missile Red, TOPQ0201
