GPMA1209 Zero .46-.55 GP/EP ARF 56.6"

GPMA1209 Zero .46-.55 GP/EP ARF 56.6". Fly Japan's legendary long-range fighter!
Superior quickness, excellent maneuverability and very long range made the Japanese Zero one of the deadliest dogfighters of early WWII. You can experience the fierce thrill of flying a Zero for yourself.
It's a satisfying sport performer on either glow or brushless electric power and a very affordable way to own a piece of warbird history.
Flies fast and tracks well through all sport aerobatics — slows for stable approaches and solid, predictable landings.
Factory-built of balsa/ply for the best in lightweight strength.
Low parts count for fast, easy assembly.
Features an authentic scale trim scheme done in high-quality heat-shrink film and a decal sheet with scale markings.
Includes a high-quality fiberglass cowl painted to match the trim scheme.
Landing gear doors offer realistic looks and installation ease

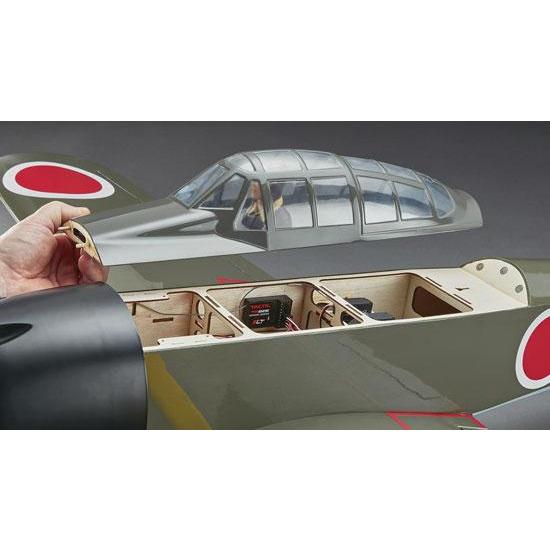

Large hatch provides easy access for maintenance and battery changes.
Complete hardware package includes a spinner and EP motor mounting parts.
Lets you save by recycling inexpensive standard servos and radios from .46-size trainers. This is the Glow or Electric Powered, Radio Controlled
Almost Ready to Fly Zero Sport Fighter from Great Planes.
FEATURES
Construction: Balsa and ply
Wing: One-piece, plywood wing joiner
Aileron Control: Dual servo
Landing Gear: Main, prebent wire with 3" (76mm) diameter wheels
tail gear, prebent wire with 1" (25.4mm) diameter wheel
Cowl: Painted fiberglass
Motor Mount: Plywood
Engine Mount: Two-piece composite plastic
Fuel Tank: Approximately 8oz (240cc)
Spinner: Black plastic construction 2.5" (63mm) diameter
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship
at the date of purchase. This warranty does not cover any
component parts damaged by use or modification.
INCLUDES

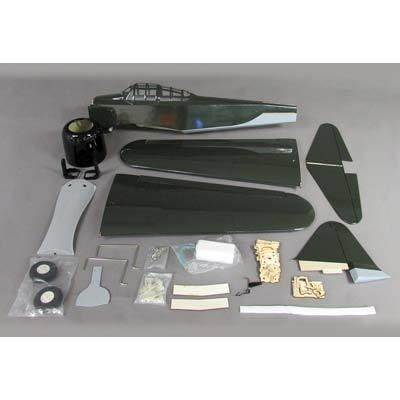

ARF Zero Sport Fighter, Cowl, Canopy, Landing Gear, Wheels, Decals,
Fuel Tank, Motor Mount, Engine Mount and Instruction Manual
REQUIREMENTS
Radio: 4-5 channel
Servos: Four mini, five if using glow engine
6" (150mm) Extensions: Four for aileron servos
Receiver Battery: 4-cell at least 2000mAh if using glow engine
Electric Power;

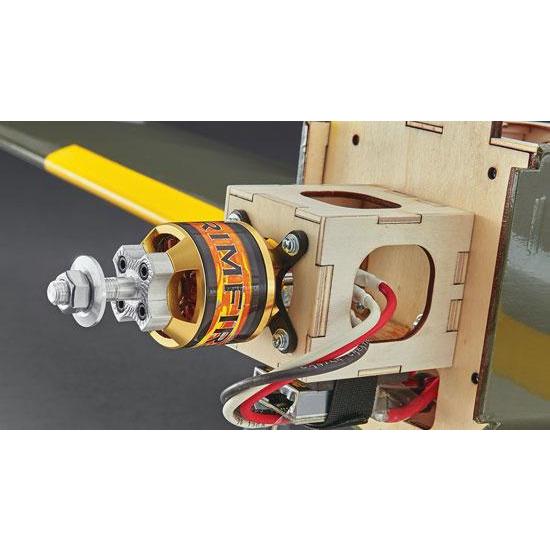

Brushless Motor: Great Planes RimFire .32 42-50-800 recommended
ESC: 60A
Battery: 4S LiPo, 3300-4000mAh
Charger: Compatible with selected battery
Propeller: 13x8E
Glow Power;

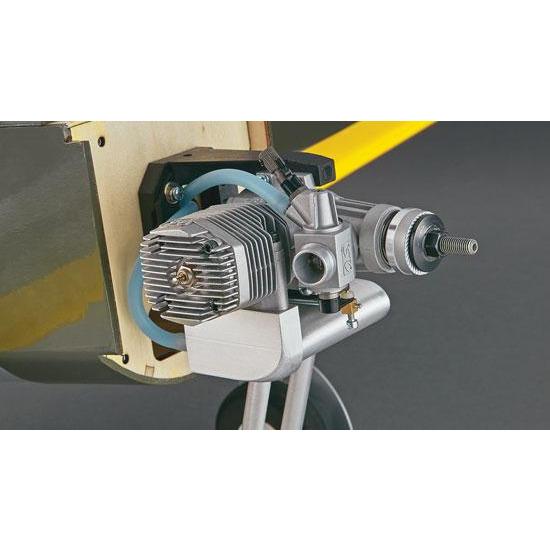

Engine: .46-.55 2-stroke OR .70 4-stroke
Muffler: Pitts style
Propeller: Compatible with selected engine
Servo: Mini, for throttle
Glow fuel, glow starter, building and field equipment
SPECIFICATIONS
Wingspan: 56.6" (1435mm)
Length: 46" (1170mm)
Wing Area: 537 sq in (34.6 sq dm)
Wing Loading: 21-25 oz/sq ft (64-76 g/sq dm)
Center of Gravity (CG): 3-4" (75-100mm) back from leading edge of
wing measured at the fuselage side
Control Throws: Low High
Elevator (up & down): 3/8" (10mm) 11° 5/8" (16mm) 19°
Aileron (up & down): 1/4" (6mm) 11° 1/2" (13mm) 21°
Rudder (right & left) 1" (25mm) 12° 1-3/4" (44mm) 21°
COMMENTS
If a replacement fuel tank is needed the Sullivan 8oz (SULQ1427),
or the DuBro 8oz (DUBQ0208) can be used.
Some modification and trimming to the fuselage may be
required when installing any aftermarket tank.
