GPMA1210 Escapade MX 30-35cc Gas/EP ARF 80"

GPMA1210 Escapade MX 30-35cc Gas/EP ARF 80". A breeze to build. A pleasure to fly.
Designed for 30-35 cc gasoline and electric power, the Escapade MX is a sport pilot's dream come true. Not only does it handle low-speed maneuvers and high-speed aerobatics with equal authority, its low parts count and self-aligning tail surfaces help keep assembly time to a minimum.
Compatible with 63-62-250kV brushless motors like the RimFire 1.60, the Escapade MX executes snap rolls, stall turns, inverted flight and every move in between. A high-visibility MonoKote trim scheme, painted fiberglass parts and prehinged control surfaces maximize convenience – while minimizing work!
Exciting aerobatics with gasoline or brushless electric power.
Low parts count for fast, straightforward assembly.
Two-piece wing simplifies construction and transport.
Aluminum spinner and pilot figure included. FEATURES
Construction: Balsa and ply
Wing: Two-piece with carbon wing joiner
Aileron Control: Dual servo
Covering: Top Flite MonoKote
Cowl: Painted fiberglass
Canopy: Clear, painted pilot figure
Wheel Pants: Painted fiberglass
Spinner: 3.25" (82mm) aluminum, polished natural finish
Landing Gear: Main, two-piece prebent aluminum 3.5" (89mm) diameter
foam wheels, 1.5" (38mm) diameter foam tailwheel
Fuel Tank: 14oz (420cc)
Motor Mount: Plywood
Engine Mount: Plywood
INCLUDES

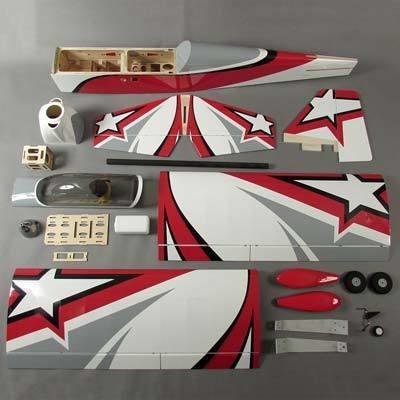

ARF Escapade MX with Landing Gear, Wheels, Cowl, Wheel Pants, Decals,
Spinner, Pilot Figure, Instruction Manual
REQUIREMENTS
Radio: At least 4-channels
Servos: 5-9
24" Servo Extensions: Two
6" Servo Extensions: Two
Y-Harnesses: Two
Receiver Battery: At least 1300mAh

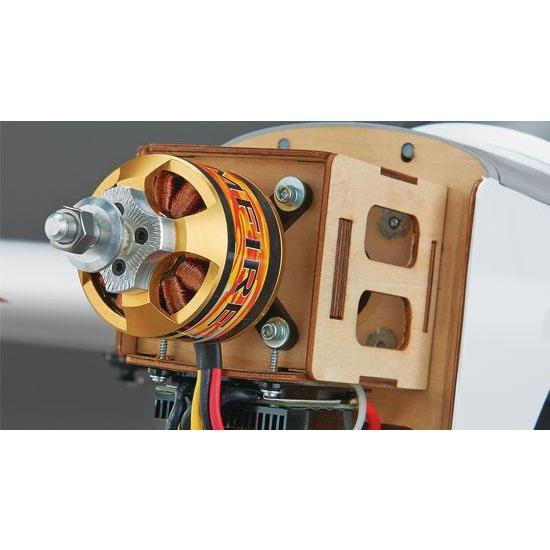

Electric Power;
Brushless Motor: 63-62-250kV Great Planes RimFire 1.60 recommended
ESC: 80A
LiPo Batteries: Two 18.5V 5000mAh
Propeller: 18x8
Battery Charger: To match selected LiPo batteries
Charging bag, building & field equipment

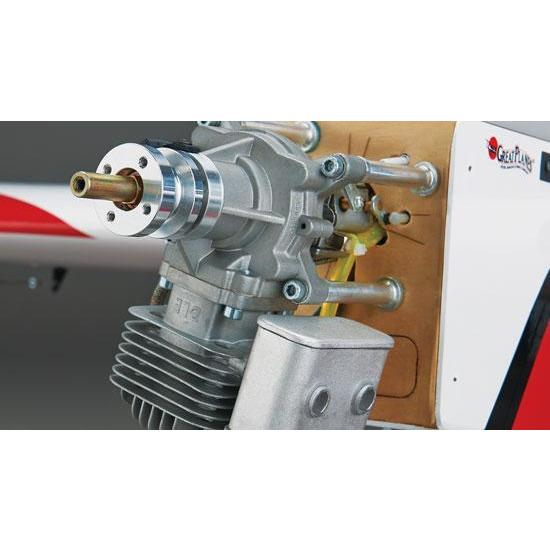

Gasoline Power;
Engine: 1.8-2.1 cu in (30-35 cc) gasoline engine
Propeller: To match selected engine
Servo: Standard size and torque for throttle, additional servo
required if cchoke is used
Ignition Battery: 6V, at least 1300mAH
Building and field equipment
SPECIFICATIONS
Wingspan: 80" (2030mm)
Wing Area: 1184 sq in (76.4 sq dm)
Wing Loading: 25-27 oz sq ft (76-82 g sq dm)
Length: 67" (1700mm)
Weight: 12.75 - 13.75lbs (5780 - 6230g)
Center of Gravity (CG): 4-7/16" (113mm) - 5-1/8" (130mm) back from
the leading edge of the wing measured at the fuselage
Control Throws: High Rate Low Rate
Elevator up/down: 7/8" (22mm) 13° 5/8" (16mm) 9°
Rudder right/left: 2" (51mm) 19° 1-3/4" (44mm) 17°
Ailerons up/down: 3/4" (19mm) 17° 1/2" (13mm) 12°
Flaps down: 7/8" (22mm) 20°
Mix in approximately 5/16" (8mm) down elevator with the flap
This reduces balloning when flaps are applied
COMMENTS
Following are the Top Flite MonoKote colors used to cover this model
and order numbers for 6' rolls
Jet White, TOPQ0204 Dove Gray, TOPQ0211
Black, TOPQ0208 True Red, TOPQ0227
If a replacement fuel tank is needed, the Sullivan 14oz Flextank
(SULQ1742), or the DuBro 14oz Square Fuel Tank (DUBQ0214) may be
used. Some trimming and modification may be required.
