Horizon
GPMA1212 PT-19 Sport Scale .46 GP/EP ARF
Regular price
$159.99 USD
Regular price
$199.99 USD
Sale price
$159.99 USD
Unit price
per
Couldn't load pickup availability
GPMA1212 PT-19 Sport Scale .46 GP/EP ARF. Touch History. Touch the Sky.
PT-19s turned thousands of raw recruits into combat-ready fighter pilots for WWII. Now, this iconic titan of the air is ready to send you into the clouds, as well. It’s not a trainer, but pilots with a little time behind the sticks will love the way it handles in the air. Plus, much of the assembly is already completed for you. Put it in the air and experience the “Cradle of Heroes” today.
Fast, easy assembly to get you in the air faster.
For .46 glow or brushless power.
Excellent sport flier handles even better than the original.
Sport-scale realism that stands out in the sky. FEATURES
Construction: Balsa and ply
Wing: One-piece with two plywood wing joiners

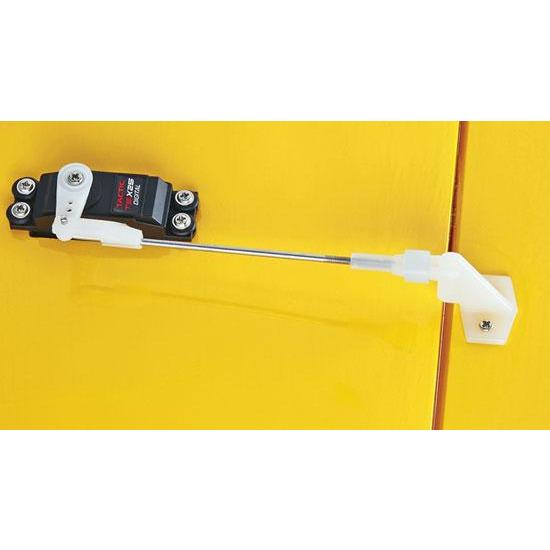

with dual servo aileron control
Covering: High-quality iron-on

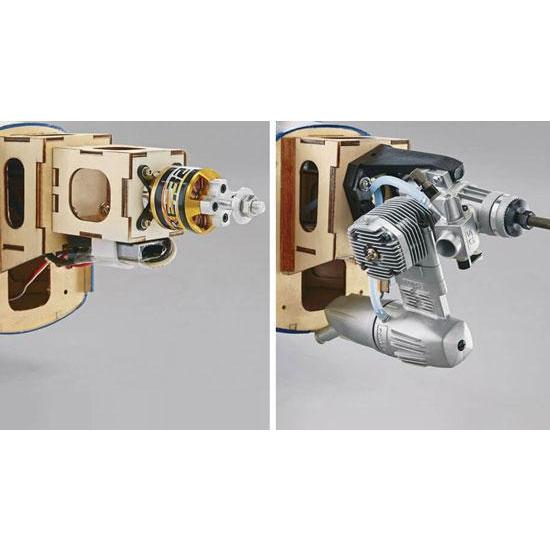

Motor Mount: Plywood
Engine Mount: Two-piece composite plastic
Cowl: Painted fiberglass
Hatch: Plywood and balsa with dual windshields and painted pilot
bust
Landing Gear: 0.16" (4mm) diameter prebent wire with 3" (76mm)
wheels, prebent wire tail gear with 1" (25.4mm) diameter wheel
Fuel Tank: Approximately 6oz (180cc)
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship
at the date of purchase. This warranty does not cover any
component parts damaged by use or modification.
INCLUDES
Prebuilt Wing, Fuselage and Tail Surfaces, Cowl, Landing Gear,
Pilot Bust, Fuel Tank, Hardware and Instruction Manual
REQUIREMENTS
Radio: 4-5 channel
Servos: 4-5 mini digital
6" (150mm) Servo Extensions: Two if mixing aileron servos
electronically with programmable mixing in transmitter
Dual Servo Extension: One if connecting servos with Y-harness
Building and field equipment
For Electric Power;
Motor: 1.65" (42mm) 925W, 42-50-800 ElectriFly RimFire .32
recommended
Electronic Speed Control: Castle Creations Edge Lite 75 if using
motor listed above
Battery: LiPo 4S, at least 3300mAh
Battery Charger: Compatible with selected battery
Propeller: To match selected motor
For Glow Power;
Engine: .46 - .55 cu in 2-stroke, or .70 cu in 4-stroke
If using OS .46AXII ABL, muffler extension OSMG2578 is required
Propeller: To match selected engine
SPECIFICATIONS
Wingspan: 56.5" (1435mm)
Length: 46.2" (1173mm)
Weight: 80 - 88oz (2268 - 2495g)
Wing Area: 536.7 sq in (34.62 sq dm)
Wing Loading: 21.5 - 23.6 oz/sq ft (65.5 - 72.0 g/sq dm)
Airfoil: Semi-symmetrical
Center of Gravity (CG): 2-3/4 - 3-3/4" (70 - 95mm) back from the
leading edge of the wing measured at the fuselage
Control Throws; Low Rate High Rate
Elevator, up & down: 3/8" (10mm) 9° 1/2" (13mm) 11°
Rudder, right & left: 1" (25.4mm) 14° 1-1/2" (38mm) 20°
Ailerons, up & down: 3/16" (5mm) 8° 3/8" (10mm) 9°
PT-19s turned thousands of raw recruits into combat-ready fighter pilots for WWII. Now, this iconic titan of the air is ready to send you into the clouds, as well. It’s not a trainer, but pilots with a little time behind the sticks will love the way it handles in the air. Plus, much of the assembly is already completed for you. Put it in the air and experience the “Cradle of Heroes” today.
Fast, easy assembly to get you in the air faster.
For .46 glow or brushless power.
Excellent sport flier handles even better than the original.
Sport-scale realism that stands out in the sky. FEATURES
Construction: Balsa and ply
Wing: One-piece with two plywood wing joiners
with dual servo aileron control
Covering: High-quality iron-on
Motor Mount: Plywood
Engine Mount: Two-piece composite plastic
Cowl: Painted fiberglass
Hatch: Plywood and balsa with dual windshields and painted pilot
bust
Landing Gear: 0.16" (4mm) diameter prebent wire with 3" (76mm)
wheels, prebent wire tail gear with 1" (25.4mm) diameter wheel
Fuel Tank: Approximately 6oz (180cc)
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship
at the date of purchase. This warranty does not cover any
component parts damaged by use or modification.
INCLUDES
Prebuilt Wing, Fuselage and Tail Surfaces, Cowl, Landing Gear,
Pilot Bust, Fuel Tank, Hardware and Instruction Manual
REQUIREMENTS
Radio: 4-5 channel
Servos: 4-5 mini digital
6" (150mm) Servo Extensions: Two if mixing aileron servos
electronically with programmable mixing in transmitter
Dual Servo Extension: One if connecting servos with Y-harness
Building and field equipment
For Electric Power;
Motor: 1.65" (42mm) 925W, 42-50-800 ElectriFly RimFire .32
recommended
Electronic Speed Control: Castle Creations Edge Lite 75 if using
motor listed above
Battery: LiPo 4S, at least 3300mAh
Battery Charger: Compatible with selected battery
Propeller: To match selected motor
For Glow Power;
Engine: .46 - .55 cu in 2-stroke, or .70 cu in 4-stroke
If using OS .46AXII ABL, muffler extension OSMG2578 is required
Propeller: To match selected engine
SPECIFICATIONS
Wingspan: 56.5" (1435mm)
Length: 46.2" (1173mm)
Weight: 80 - 88oz (2268 - 2495g)
Wing Area: 536.7 sq in (34.62 sq dm)
Wing Loading: 21.5 - 23.6 oz/sq ft (65.5 - 72.0 g/sq dm)
Airfoil: Semi-symmetrical
Center of Gravity (CG): 2-3/4 - 3-3/4" (70 - 95mm) back from the
leading edge of the wing measured at the fuselage
Control Throws; Low Rate High Rate
Elevator, up & down: 3/8" (10mm) 9° 1/2" (13mm) 11°
Rudder, right & left: 1" (25.4mm) 14° 1-1/2" (38mm) 20°
Ailerons, up & down: 3/16" (5mm) 8° 3/8" (10mm) 9°
