GPMA1220 Big Stik 40 GP ARF .40-.51,58.5"

GPMA1220 Big Stik 40 GP ARF .40-.51,58.5". State-of-the-art Stik ARF!
After only 12-15 hours in the workshop, you emerge with a model equal to any expertly built kit. That’s one advantage of a Great Planes' almost ready-to-fly Big Stik – their huge leap forward in prebuilt quality. Great Planes also returns to the original Big Stik plans, rather than copying one of the numerous remakes that crowded airfields over the years. The result? ARFs that unite a pure, proven design with the best modern model-making technology.
Over 90% factory-built, with exceptional quality wood construction and preapplied MonoKote covering.
Easy low-speed handling characteristics permit leisurely landings on the included, heavy-duty aluminum landing gear.
Step-by-step, photo-illustrated assembly instructions double as an exceptionally thorough reference for future maintenance and repairs. This is the Radio Controlled, Glow Powered, Almost Ready-to-Fly,
Great Planes Big Stik .40 Sport Airplane.
Great planes returned to the original Big Stik plans to create
this 90% Pre-Built and MonoKote Covered ARF Kit.
Recommended for modelers with trainer airplane experience.
FEATURES
Construction: All balsa and plywood
Wings: One piece, all wood, held to fuselage with two included 1/4-20
wing bolts. Fully symmetrical high-wing configuration.
Covering: Factory applied adhesive backed MonoKote. Color scheme is
Red with the Maltese Cross in Black set against a White background
on the wings, tail section, and top of the fuselage behind the
wing. For stock numbers of covering used, see COMMENTS.
Radio Compartment: Easily accessible, plywood reinforced.

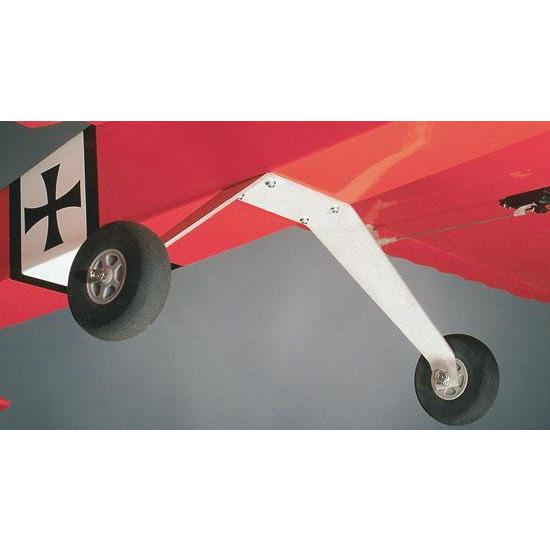

Landing Gear: Pre-formed aluminum .12" (3mm) thick. Steerable .16"
(4mm) thick pre-formed wire nose gear.
Aileron Control: Dual standard size servos
Building Time: Ready to fly in only 12-15 hours
Warranty Period: Great Planes Model Manufacturing guarantees this kit
free from defects in material and workmanship at purchase date.
This warranty does not cover any components damaged by use
or modification.

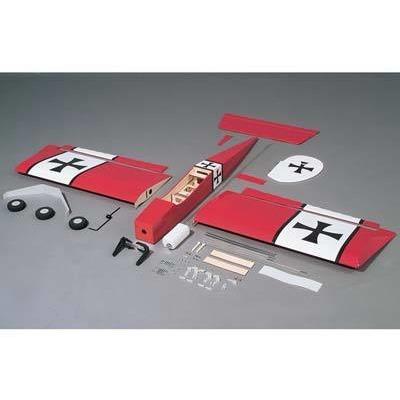

INCLUDES
One Great Planes ARF R/C Glow Powered Big Stik .40 Sport Airplane
with pre-built and covered wings fuselage and tail assemblies,
pushrods, pre-bent .012" (3mm) main landing gear, 2.75" (70mm) main
wheels, nylon adjustable engine mount, 8.75oz (260cc) fuel tank,
2.5" (64mm) spinner, plywood servo trays and wing joiners, hardware
package, fuel tubing, and photo-illustrated instructions.
REQUIREMENTS
Engine: .40-.51 cu in (6.5-8.5cc) 2-stroke
OR .50-.70 cu in (8.5-11.5cc) 4-stroke
Muffler: Sports-Style, engine mounts in an upright position, stock
muffler supplied with engine will work fine.
Radio: Four channel.
Servos: Standard (2-Aileron, 1-Elevator, 1-Throttle, 1-Rudder).
(a high torque servo is suggested for the rudder, but not required)
Servo Extensions: Two 6" (152mm).
Y-Harness: One, for aileron servos.
Misc. Items: Glow plug, ¼" foam rubber padding, medium fuel tubing,
fuel filter, propeller, building and field equipment.
SPECIFICATIONS
Wingspan: 59" (1500mm)
Wing Area: 757 sq in (48.8 sq dm)
Weight: 5.25- 6lbs (2.38 - 2.72kg)
Wing Loading: 19.8 - 21.3 oz/sq ft (50 - 65 g/sq dm)
Length: 51" (1295mm)
Airfoil: Fully-Symmetrical High Wing.
Center of Gravity: 3.75" (95mm) Back from the wing's leading edge.
Control Throws- High Rate Low Rate
Elevator: Up & Down .75" (19mm) .62" (16mm)
Rudder: Right to Left 1.61" (41mm) 1" (25.4mm)
Ailerons: Up & Down .86" (22mm) .62" (16mm)
COMMENTS
Following are the MonoKote colors used on this model and stock
numbers for six foot rolls,
True Red TOPQ0227 White TOPQ0204 Black TOPQ0208
If a replacement fuel tank is needed an 8oz (240cc) tank like
SULQ1439 can be used. Some minor modification may be needed as this is
not the exact shape of the original tank.
ir/kh
MonoKote colors checked & matched updated tjt 022305
