GPMA1250 Quik-V6 Q500 Sport Racer ARF .40-.55, 52"
Regular price
$199.99 USD
Regular price
$249.99 USD
Sale price
$199.99 USD
Unit price
per
Couldn't load pickup availability
GPMA1250 Quik-V6 Q500 Sport Racer ARF .40-.55, 52". Jim Allen’s AMA Nationals winner!
Featuring Jim Allen’s Nats-winning design, the Quik-V6 Q500 is destined to dominate Quickie 500 events with its pure performance and competitive spirit. It's also a great choice for sport pilots who have the “need for speed.” Either way, experienced pilots can count on the Quik-V6 Q500 to build and fly FAST!
Prebuilt and factory-covered wings, fuselage and V-tail.
Balsa sheeted foam core wing with carbon fiber/fiberglass reinforcement.
Internal V-tail linkages.

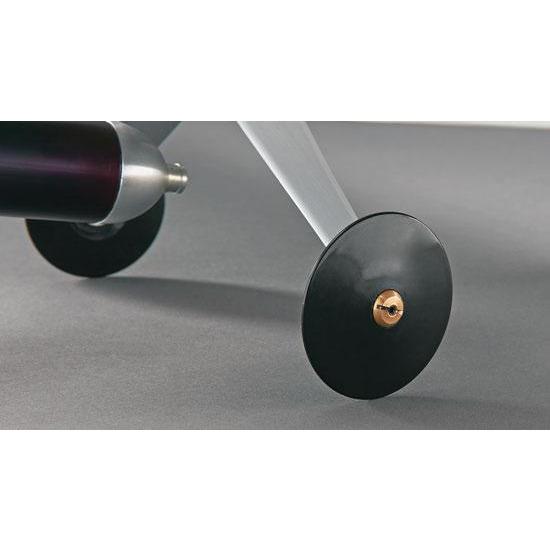

Low-drag wheels.

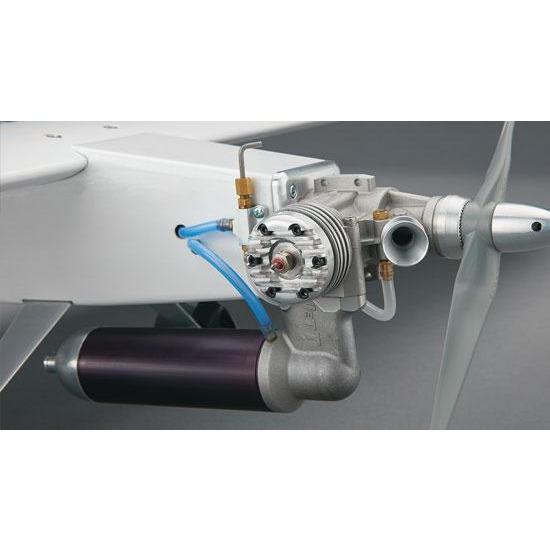

Aluminum “back plate” engine mount.
All-white finish allows for custom racer-preferred trim schemes.
Complete hardware package included. This is the Radio Controlled, Glow Powered, Almost Ready to Fly
Great Planes QuikV6 Q500 Jim Allen Pylon Racer.
Designed by Jim Allen, a multi-time national champion pylon racer.
For experienced to expert pilots
**This pylon racer reaches speeds well over 100 mph (160 km/h)**
**when equipped with the recommended racing power system,**
**and should only be flown at an approved AMA flying site.**
FEATURES
Construction: Built-up balsa and ply, internal V-tail linkages for
less drag
Wing: One-piece wood and foam construction, semi-symmetrical
configuration
Covering: Top Flite MonoKote, all white to enable pilot to design
their own trim scheme
Wheels: Low drag nylon
Engine Mount: Aluminum
Fuel Tank: 6oz (180cc)
INCLUDES
Prebuilt and Covered Wing, Fuselage and Tail Assemblies with Wheels,
Engine Mount, Hardware Package and Instruction Manual
REQUIREMENTS
Radio: 4-channel with V-tail mixing
Servos: Four mini, 50 oz-in minimum torque
Engine: .40-.55 2-stroke
Building and field equipment
SPECIFICATIONS
Length: 40.5" (1030mm)
Wingspan: 52" (1320mm)
Weight: 3.6 - 3.75lbs (1630 - 1700g)
Wing Area: 503 sq in (32.4 sq dm)
Wing Loading: 16.5 - 17.2 oz sq/ft (50 - 52.5 g/sq/dm)
Wing Type: Semi-symmetrical
Center of Gravity (CG): 3" (76mm) back from the leading edge of the
wing measured at the fuselage
Control Throws: Low Rate High Rate
Elevator: 5/32" (4mm) 7.3° 7/32" (6mm) 10.2°
Rudder: 1/8" (3mm) 5.8° 7/32" (6mm) 10.2°
Ailerons: 5/32" (4mm) 7.2° 7/32" (6mm) 10.2°
COMMENTS
If a replacement fuel tank is needed the Sullivan 6oz (SULQ1426),
or the DuBro 6oz (DUBQ0206) can be used.
Some modification and trimming to the fuselage may be
required when installing any aftermarket tank.
Featuring Jim Allen’s Nats-winning design, the Quik-V6 Q500 is destined to dominate Quickie 500 events with its pure performance and competitive spirit. It's also a great choice for sport pilots who have the “need for speed.” Either way, experienced pilots can count on the Quik-V6 Q500 to build and fly FAST!
Prebuilt and factory-covered wings, fuselage and V-tail.
Balsa sheeted foam core wing with carbon fiber/fiberglass reinforcement.
Internal V-tail linkages.
Low-drag wheels.
Aluminum “back plate” engine mount.
All-white finish allows for custom racer-preferred trim schemes.
Complete hardware package included. This is the Radio Controlled, Glow Powered, Almost Ready to Fly
Great Planes QuikV6 Q500 Jim Allen Pylon Racer.
Designed by Jim Allen, a multi-time national champion pylon racer.
For experienced to expert pilots
**This pylon racer reaches speeds well over 100 mph (160 km/h)**
**when equipped with the recommended racing power system,**
**and should only be flown at an approved AMA flying site.**
FEATURES
Construction: Built-up balsa and ply, internal V-tail linkages for
less drag
Wing: One-piece wood and foam construction, semi-symmetrical
configuration
Covering: Top Flite MonoKote, all white to enable pilot to design
their own trim scheme
Wheels: Low drag nylon
Engine Mount: Aluminum
Fuel Tank: 6oz (180cc)
INCLUDES
Prebuilt and Covered Wing, Fuselage and Tail Assemblies with Wheels,
Engine Mount, Hardware Package and Instruction Manual
REQUIREMENTS
Radio: 4-channel with V-tail mixing
Servos: Four mini, 50 oz-in minimum torque
Engine: .40-.55 2-stroke
Building and field equipment
SPECIFICATIONS
Length: 40.5" (1030mm)
Wingspan: 52" (1320mm)
Weight: 3.6 - 3.75lbs (1630 - 1700g)
Wing Area: 503 sq in (32.4 sq dm)
Wing Loading: 16.5 - 17.2 oz sq/ft (50 - 52.5 g/sq/dm)
Wing Type: Semi-symmetrical
Center of Gravity (CG): 3" (76mm) back from the leading edge of the
wing measured at the fuselage
Control Throws: Low Rate High Rate
Elevator: 5/32" (4mm) 7.3° 7/32" (6mm) 10.2°
Rudder: 1/8" (3mm) 5.8° 7/32" (6mm) 10.2°
Ailerons: 5/32" (4mm) 7.2° 7/32" (6mm) 10.2°
COMMENTS
If a replacement fuel tank is needed the Sullivan 6oz (SULQ1426),
or the DuBro 6oz (DUBQ0206) can be used.
Some modification and trimming to the fuselage may be
required when installing any aftermarket tank.
