GPMA1295 Waco Biplane ARF

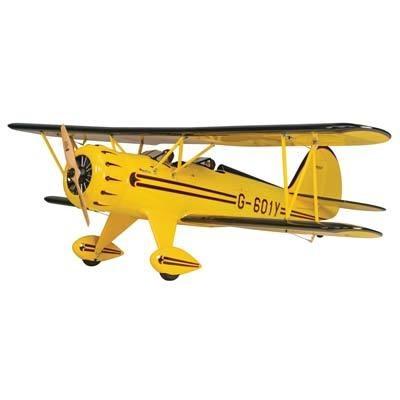

GPMA1295 Waco Biplane ARF. The Greatest of the Golden Age Bipes!
The number of sleek, fast aircraft boomed during the Golden Age of Aviation, but none could compare with the Waco. Today, the Waco YMF-5D offers the same timeless good looks and the benefits of modern technology. Great Planes’ replica recreates its smooth, flowing lines and classic style in sport-scale detail, painted fiberglass and rich MonoKote film.

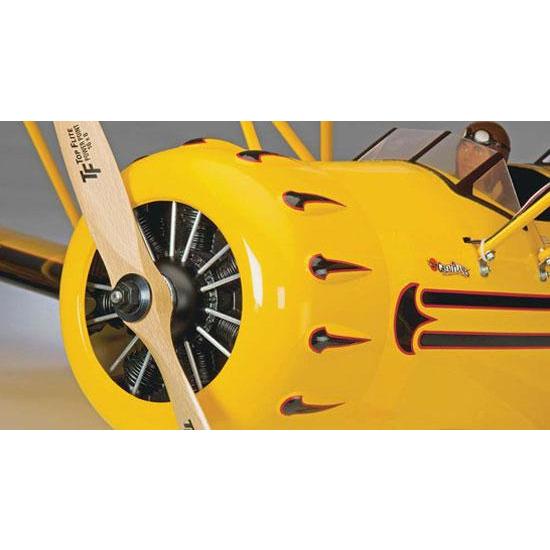

The cowl features a realistic replica radial and factory-painted blister detail that adds to looks while reducing finishing time. A hidden ring secures the cowl without screw holes, preserving scale looks.
Tubes for the horizontal stabilizer simplify alignment and installation, reducing assembly time.
Painted fiberglass parts — including the cowl, struts, cabanes, wheel pants and fairings — ensure seamless looks and fast installation.
Each aileron has a dedicated servo, ensuring swift, dependable response, shorter linkages and easier installation and adjustment. This is the radio controlled, glow or gasoline powered, almost ready to fly
Waco YMF-5D Biplane from Great Planes.
Includes parts to build a two-seat trainer or a single pilot mail carrier.
IMAA-Legal 72" Wingspan
FEATURES
Construction: Built-up balsa and ply
Wings: One-piece with two each plywood and aluminum joiners
Aileron Control: Four servo (two per wing)
Covering: Top Flite MonoKote
Cowl: Painted fiberglass with replica radial engine detail that is
secured with hidden cowl rings

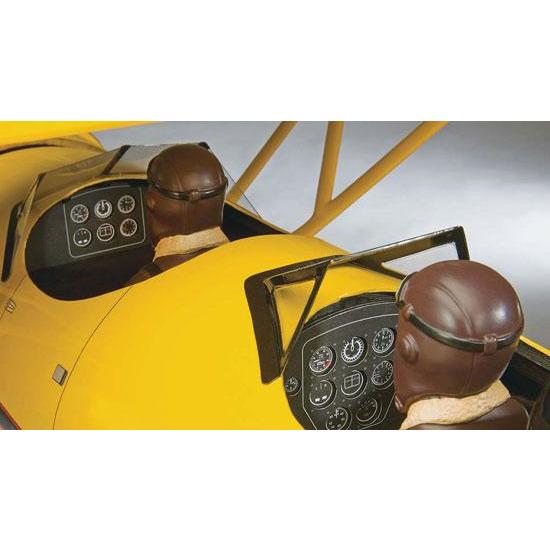

Cockpit: Parts included for a single-cockpit mail carrier, or a two-
cockpit aircraft, instrument panel decals, pilot figures are not
included
Engine Mount: Two-piece composite construction
Fuel Tank: Approximately 24oz (720cc)
Landing Gear: Preformed 0.16" (4mm) thick painted aluminum with
painted fiberglass fairings and wheel pants
Wheels: Three foam, main 3.5" (90mm) diameter, tail wheel, 1.5"
(38.5mm) diameter
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover component parts
damaged by use or modification.
INCLUDES

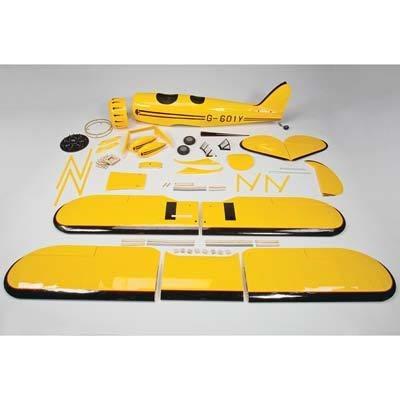

Pre-built wing, fuselage and tail assemblies, landing gear, wheels
hardware packages, instruction manual, fuel tank, decals and
dummy plastic engine detail
REQUIREMENTS
Radio: At least 4-channels
Servos: Seven
Servo Extensions: Two 16" (405mm)
One 12" (300mm)
One 30" (760mm)
Y Harness: One 21" (533mm)
One 6" (152mm) (two if not using computer radio)
Switch & Charge Jack Mounting Set

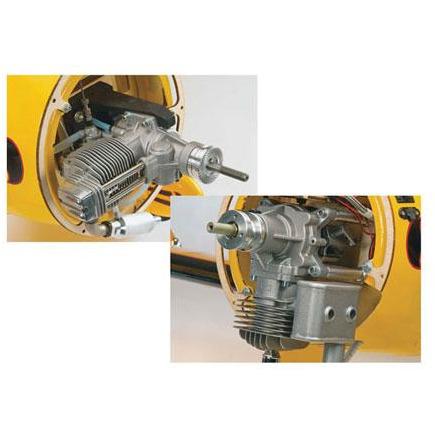

Engine: .91 cu in (14.9 cc) 2-stroke OR
1.20 cu in (19.7 cc) 4-stroke OR
1.5 - 1.8 cu in (25 - 30 cc) gasoline engine
Propeller, building & field equipment
SPECIFICATIONS
Wing Span: 72" (1830mm)
Wing Area: 1384 sq in (89.2 sq dm)
Weight: 12.75 - 13.75 lb (5.78 - 6.23 kg)
Wing Loading: 21 - 21oz/sq ft (64 - 70g/sq dm)
Length: 56.5" (1435mm)
Center of Gravity (CG): 5.25" (133mm) back from the leading edge of
the top wing
Control Throws- Low Rate High Rate
Elevator Up & Down, 11/16" (17mm) 8° 1-1/4" (32mm) 14°
Rudder Right & Left, 1-3/4" (44mm) 17° 2-1/4" (57mm) 22°
Ailerons Up & Down, 11/16" (17mm) 14° 7/8" (22mm) 18°
COMMENTS
Following are the Top Flite MonoKote colors used on this model and
order numbers for 6' rolls;
Cub Yellow (TOPQ0220)
Black (TOPQ0208)
True Red (TOPQ0227)
If a replacement fuel tank is needed, order the Sullivan 24oz Slant
Type Flextank (SULQ1444).
Some minor trimming and modifications may be required.
