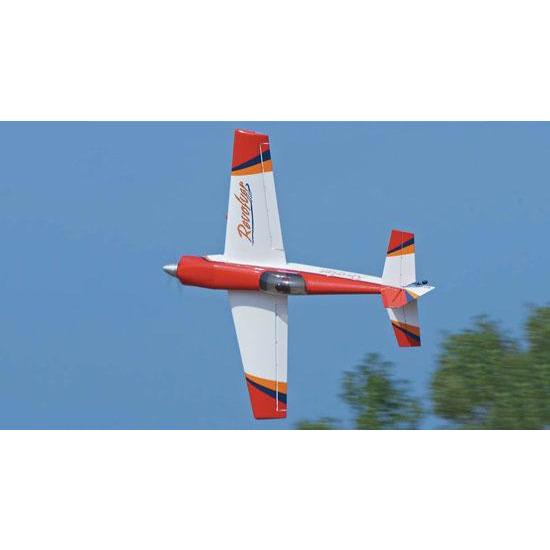

GPMA1425 Giant Revolver Sport Gas ARF 50-55cc,90"

GPMA1425 Giant Revolver Sport Gas ARF 50-55cc,90". Step up in simplicity, style and size!
The Giant Scale Revolver delivers “bigger-is-better” performance with easier-than-average assembly. Pilots who like racy good looks and aerobatic performance will love the Revolver. Simple 4-channel design makes radio setup a snap.

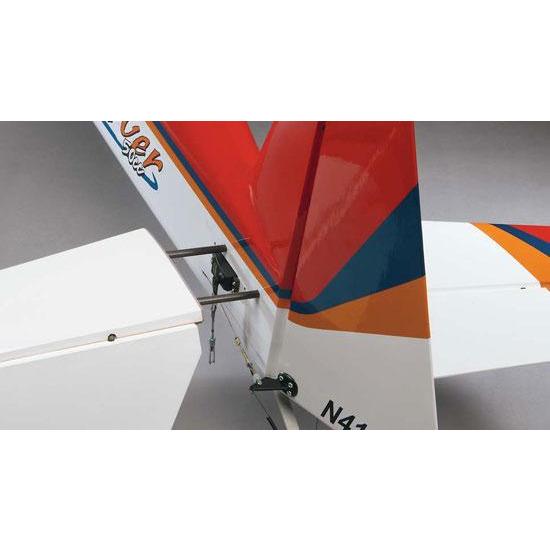

Easy set up gets you on the flight line in 10 hours or less. Both the wings and horizontal stabilizers self-align on joiner tubes for fast at-field assembly and easier transportation and storage. Other time-savers include pre-hinged ailerons and elevators, a factory-installed canopy and a painted fiberglass cowl that comes with a cowl-ring mounting system already in place.No-cost extras include an aluminum spinner as well as sturdy aluminum gear and fiberglass wheel pants that attach with just two screws. Enjoy “big time” performance for a little bit of assembly time with the Revolver 50 cc.
Fuel tank
Engine mount
Main and tail wheels
Pre-bent main landing gear

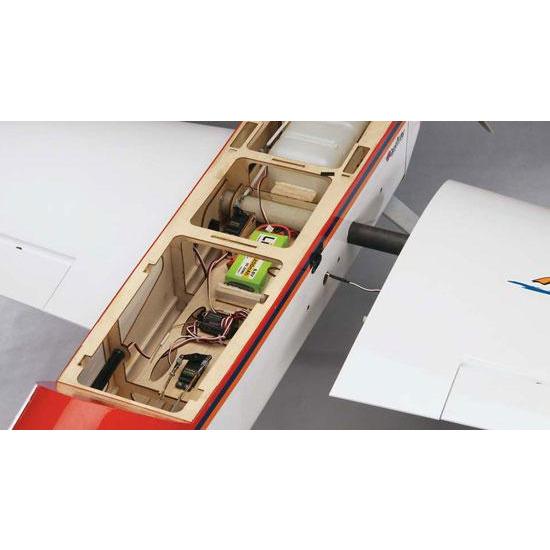

Wood servo trays
Pilot bust. This is the Radio Controlled, Gasoline Powered,
Almost Ready to Fly Giant 50cc Revolver Airplane Kit from Great Planes.
FEATURES
Construction: Balsa and ply
Covering: Top Flite MonoKote
Wings: Two-piece with joiner tube
Aileron Control: Dual servo
Cowl: Painted fiberglass
Wheel Pants: Painted fiberglass
Fuel Tank: 24oz (720ml), approximate
Engine Mount: Plywood
Landing Gear: Two-piece prebent aluminum with two 3.5" (90mm) main
wheels and one 1-1/2" (38mm) tailwheel, prebent steel tail gear
Spinner: Aluminum, 5" (127mm) diameter
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover any component
parts damaged by use or modification.
INCLUDES
Prebuilt Wing, Fuselage and Tail Sections, Decals, Spinner, Landing
Gear, Fuel Tank, Motor Mount, Engine Mount and Instruction Manual
REQUIREMENTS
Radio: 4 channel minimum, 6-channel recommended
Servos: Five 99 oz/in torque, 2-elevator, 2-ailerons, 1-rudder
Two 50 oz/in torque, 1-throttle, 1-optional choke
36" (914mm) Heavy Duty Servo Extensions: Two for elevator servos (one
if using dual servo extension)
12" (305mm) Heavy Duty Servo Extensions: Three, two for aileron
servos, one for throttle, two if not using Y connectors from
receiver to ailerons
6" (152mm) Heavy Duty Servo Extension: One for choke
Heavy Duty Dual Servo Lead: Two for elevator and aileron mixing if
using 4-ch radio
Heavy Duty Switch Harnesses: Two
Engine: 50-55cc two stroke
Muffler: Wrap around Pitts style
Propeller: Follow recommendations for engine
Gasoline and building and field equipment
SPECIFICATIONS
Wingspan: 90" (2285mm)
Wing Area: 1303 sq in (84 sq dm)
Wing Loading: 34-36 oz/sq ft (104-110 g/sq ft)
Weight: 19.5-20.5lbs (8840-9300g)
Length: 82.5" (2095mm)
Center of Gravity (CG): 7-7/8" (200mm) back from the leading edge of
the wing at the fuselage
Control Throws: Low Rate High Rate
Elevator: (Up & Down) 1/2" (13mm) 6° 3/4" (19mm) 10°
Rudder: (Right & Left) 2-3/4" (70mm) 19° 3-1/4" (83mm) 22°
Ailerons: (Up & Down) 5/8" (16mm) 12° 7/8" (22mm) 17°
COMMENTS
Page 15, step 2 of the manual should read "Drill a pilot hole through
each of the marks on the template. Remove the template and then
drill a 13/64" (5.2mm) clearance hole through the firewall on each
of the four pilot holes you drilled.
Check the servo tray and formers before flying. If needed, apply
CA glue to any loose joints.
COMMENTS
If a replacement fuel tank is needed, the Sullivan 24oz Slant Fuel
Tank (SULQ1444) can be used. Glow tubing in kit must be replaced
with gasoline-safe fuel tubing. Some trimming and modification to
airplane may be required.
Following are the colors of Top Flite MonoKote used to cover this
model and order numbers for 6' rolls;
Orange, TOPQ0202 Metallic Blue, TOPQ0402
Missile Red, TOPQ0201
