GPMA1555 Factor 3D 30-35cc Gas/EP ARF 70"

GPMA1555 Factor 3D 30-35cc Gas/EP ARF 70". Wide performance range — from mild to wild!
Released in 2013, the original Factor 3D was a 38" span park flyer that gained quick popularity for its affordability and virtually unlimited performance envelope. Today's Factor 3D offers the same performance potential, along with the added stability and visibility that its 70" wingspan offers. Whether it's built around the economy of a 30 cc gasoline engine or a brushless electric power plant, the Factor 30 cc will excel at any type of flying, from casual sport flying to all-out 3D aerobatics.
Nearly unlimited flight envelope, for everyday sport flying to 3D.
Accepts popular sizes of gas engines or electric motor systems. FEATURES
Construction: Wood, fiberglass, carbon fiber and aluminum
Wing: Two-piece, lightweight carbon fiber tube
Covering: Top Flite MonoKote
Cowl: Painted fiberglass
Spinner: Brushed natural finish aluminum, 3.25" (82.5mm) diameter
Landing Gear: Two-piece aluminum, painted white
with two 2.75" (70mm) main wheels, one 1.5" (38mm) tail wheel
Wheel Pants: Painted fiberglass
Fuel Tank: 14.2oz (420cc)
Warranty: Great Planes Model Manufacturing Company guarantees this
airplane to be free from defects in both materials and workmanship
at the date of purchase. This warranty does not cover any
component parts damaged by use or modification.

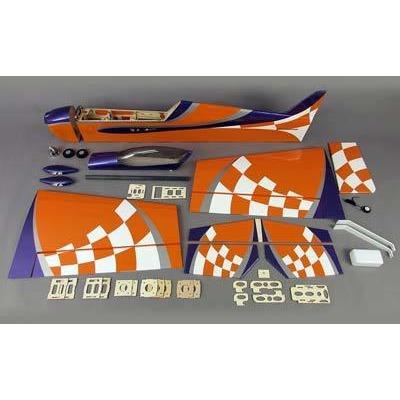

INCLUDES
Preassembled Wing, Tail and Fuselage sections, Landing Gear, Wheels,
Wheel Pants, Fuel Tank, Hardware, Pushrods, Decals and Instruction
Manual
REQUIREMENTS
Radio: 4-7 channel
Servos: At least five high-torque (2 additional standard servos
when using gas power)
20" Servo Extension: Two for aileron servos
8" Servo Extension: One for receiver battery switch to receiver
24" Servo Extension: One
For Gasoline Power;
Engine: 1.8 - 2.0 cu in (30 - 35cc) gasoline engine OR
Y-Harness: For choke if using 7-ch receiver
Heavy Duty Switch: For ignition
Ignition Battery: 1300mAh LiFe recommended
For Electric Power;
Motor: 63-62-250 Kv brushless outrunner motor
ESC: At least 80A
Batteries: Two 5S 18.5V 5000mAh LiPo batteries
Battery Charger: Compatible with selected batteries
Charging Bag
SPECIFICATIONS
Wingspan: 70" (1778mm)
Wing Area: 1174 sq in (75.7 sq dm)
Wing Loading: 24-27 oz/sq ft (73-82 g/sq dm)
Weight: 12-14 lbs (5.4-6.4 kg)
Length: 75" (1905mm)
Center of Gravity (CG): 7-1/2" - 8-5/8" (190mm - 220mm) back from
leading edge of wing measured at the fuselage side
Control Throws;
Low Rate High Rate 3D
Elevator: 3/4" (19mm) 6° 1-1/8" (29mm) 9° 4-1/4" (108mm) 37°
Rudder: 1-5/8" (41mm) 11° 2-3/8" (60mm) 16° 4-1/2" (114mm) 31°
Ailerons: 3/4" (19mm) 9° 1-1/8" (29mm) 13° 1-7/8" (47mm) 23°
COMMENTS
Following are the Top Flite MonoKote colors used to cover this
model, and order numbers for 6' rolls;
Orange (TOPQ0202) Aluminum (TOPQ0205)
Jet White (TOPQ0204) Metallic Plum (TOPQ0403)
If a new fuel tank is needed, the DuBro 14oz Tank DUBQ0214 and the
Gas Conversion Stopper, DUBQ0675 can be used.
Some trimming and modification may be required when installing any
aftermarket fuel tank.
