GPMA1574 ElectriFly ElectroStik EP ARF 52.5"
Regular price
$139.99 USD
Regular price
$179.99 USD
Sale price
$139.99 USD
Unit price
per
Couldn't load pickup availability

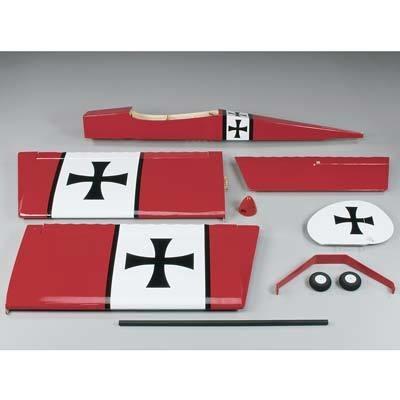

GPMA1574 ElectriFly ElectroStik EP ARF 52.5". Almost Ready-to-Fly, with classic “Stik” looks and performance!
No doubt you’ve seen other Stiks from Great Planes, but none have featured the convenience of the ElectriFly ElectroStik EP ARF! A factory-applied MonoKote trim scheme reproduces the classic red and white “Stik” colors, with traditional Maltese Cross markings rounding out the eye-catching design. Most of the assembly work has already been done for you. Just bolt the horizontal and vertical stabilizers together, assemble the wing, make final adjustments and you’re set.
Factory-applied MonoKote® trim scheme.
Prehinged control surfaces with mounted control horns.
Quick-attach wing with streamlined thumb screws.
Bolt-together horizontal and vertical stabilizers.
Single-servo aileron control.
Prebent, painted aluminum landing gear.
Two 2.25" (57 mm) diameter main wheels and one 0.75" (19 mm) diameter tailwheel.
2.25" (57 mm) diameter red plastic spinner.
Complete hardware package.
FEATURES
Construction: Balsa and ply with prehinged flight surfaces and
preinstalled control horns
Wings: Two piece with carbon fiber wing joiner
Covering: Top Flite MonoKote
Aileron Control: Single servo, servo trays in wings for optional dual
servo control
Landing Gear: Prebent and painted aluminum
Wheels: Main-two foam 2.25" (57mm) diameter, tailwheel .75" (19mm)
diameter
Spinner: Constructed of plastic, red in color, 2.25" (57mm) diameter
Hardware: Full set included
Building Time: Approximately two hours
Warranty: Great Planes Model Manufacturing Company guarantees this
kit free from defects in both materials and workmanship at date
of purchase.
INCLUDES
Great Planes ElectroStik EP ARF with landing gear, wing joiner tube,
three foam wheels, spinner, hardware and instruction manual
REQUIREMENTS
Radio: 4-channel
Servos: 3-micro
6" (152mm) Extension: For aileron servo
Motor: Rimfire brushless outrunner 42-40-1000kV GPMG4675 or
42-50-800kV GPMG4700
ESC for Brushless Motors: GPMM1840
Battery: LiPo 3200mAh 11.1V 20C Discharge w/Balance connector
Cell Balancer
Battery Charger: LiPo compatible
Propeller: 11x8.5E
SPECIFICATIONS
Wingspan: 52.75" (1340mm)
Wing Area: 589 sq in (38 sq dm)
Weight: 3 - 3.5lb (1360 - 1587g)
Airfoil: Semi symmetrical
Wing Loading: 11.7 - 13.6oz/sq ft (36 - 42g/sq dm)
Length: 45.5" (1155mm)
Center of Gravity: 3-5/8" (92mm) back from leading edge of wing at
fuselage
Control Throws- Low Rate High Rate
Elevator up & down: 1/8" (3.2mm) 5° 1/4" (6.4mm) 10°
Rudder right & left: 5/8" (15.9mm) 25° 1-1/8" (28.6mm) 50°
Ailerons up & down: 3/8" (9.5mm) 15° 1/2" (12.7mm) 20°
COMMENTS
Following are the MonoKote colors used on this model and stock
numbers for six foot rolls;
Missile Red, TOPQ0201
Jet White, TOPQ0204
Also available as an RXR (receiver ready) version that includes
servos, prop, ESC and motor, GPMA7500.
No doubt you’ve seen other Stiks from Great Planes, but none have featured the convenience of the ElectriFly ElectroStik EP ARF! A factory-applied MonoKote trim scheme reproduces the classic red and white “Stik” colors, with traditional Maltese Cross markings rounding out the eye-catching design. Most of the assembly work has already been done for you. Just bolt the horizontal and vertical stabilizers together, assemble the wing, make final adjustments and you’re set.
Factory-applied MonoKote® trim scheme.
Prehinged control surfaces with mounted control horns.
Quick-attach wing with streamlined thumb screws.
Bolt-together horizontal and vertical stabilizers.
Single-servo aileron control.
Prebent, painted aluminum landing gear.
Two 2.25" (57 mm) diameter main wheels and one 0.75" (19 mm) diameter tailwheel.
2.25" (57 mm) diameter red plastic spinner.
Complete hardware package.
FEATURES
Construction: Balsa and ply with prehinged flight surfaces and
preinstalled control horns
Wings: Two piece with carbon fiber wing joiner
Covering: Top Flite MonoKote
Aileron Control: Single servo, servo trays in wings for optional dual
servo control
Landing Gear: Prebent and painted aluminum
Wheels: Main-two foam 2.25" (57mm) diameter, tailwheel .75" (19mm)
diameter
Spinner: Constructed of plastic, red in color, 2.25" (57mm) diameter
Hardware: Full set included
Building Time: Approximately two hours
Warranty: Great Planes Model Manufacturing Company guarantees this
kit free from defects in both materials and workmanship at date
of purchase.
INCLUDES
Great Planes ElectroStik EP ARF with landing gear, wing joiner tube,
three foam wheels, spinner, hardware and instruction manual
REQUIREMENTS
Radio: 4-channel
Servos: 3-micro
6" (152mm) Extension: For aileron servo
Motor: Rimfire brushless outrunner 42-40-1000kV GPMG4675 or
42-50-800kV GPMG4700
ESC for Brushless Motors: GPMM1840
Battery: LiPo 3200mAh 11.1V 20C Discharge w/Balance connector
Cell Balancer
Battery Charger: LiPo compatible
Propeller: 11x8.5E
SPECIFICATIONS
Wingspan: 52.75" (1340mm)
Wing Area: 589 sq in (38 sq dm)
Weight: 3 - 3.5lb (1360 - 1587g)
Airfoil: Semi symmetrical
Wing Loading: 11.7 - 13.6oz/sq ft (36 - 42g/sq dm)
Length: 45.5" (1155mm)
Center of Gravity: 3-5/8" (92mm) back from leading edge of wing at
fuselage
Control Throws- Low Rate High Rate
Elevator up & down: 1/8" (3.2mm) 5° 1/4" (6.4mm) 10°
Rudder right & left: 5/8" (15.9mm) 25° 1-1/8" (28.6mm) 50°
Ailerons up & down: 3/8" (9.5mm) 15° 1/2" (12.7mm) 20°
COMMENTS
Following are the MonoKote colors used on this model and stock
numbers for six foot rolls;
Missile Red, TOPQ0201
Jet White, TOPQ0204
Also available as an RXR (receiver ready) version that includes
servos, prop, ESC and motor, GPMA7500.
