GPMA1609 Twinstar EP ARF 47.5". Double-barreled flying fun made easy.
Flying with twin motor power is unique and exciting, and the Great Planes TwinStar EP ARF is the ideal choice for making it happen. The brushless electric motors are easy to set up, with the nacelles positioned near the centerline for more stable flight. And because it’s Almost Ready-to-Fly, you can have this quality-constructed, professionally pre-covered model in the air in just a few hours!
TWO motors — twice the excitement.
Electric reliability and convenience.
FEATURES
Construction: Balsa and ply
Wing: One-piece, two plywood joiners, plywood nacelle frames
Nacelle Covers: Molded white plastic
Cowl: Plastic, painted to match color scheme
Aileron Control: Dual servo
Covering: Top Flite MonoKote
Spinners: Two 1-3/4" (44mm) red plastic
Hatch: Balsa and ply, attaches with magnets
Landing Gear: Tricycle type with three 2.5" (63mm) diameter foam
wheels
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover any component
parts damaged by use or modification.

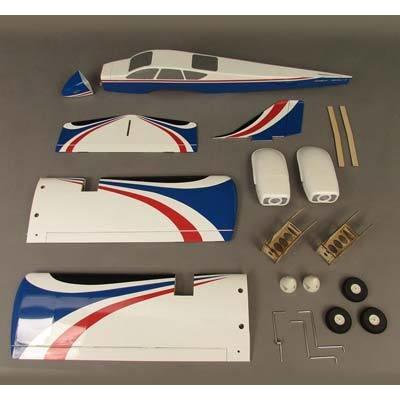

INCLUDES
ARF Twinstar EP with Landing Gear, three Wheels, two Spinners,
Pushrods, ESC Y-Harness, Decals and Instruction Manual
REQUIREMENTS
Radio: 4-channel minimum, standard size receiver
Servos: Four 39 oz-in (2.8 kg-cm) minimum torque micro size servos
12" (305mm) Extensions: Two for aileron servos
Y-Harnesses: One for ailerons
Brushless Motors: Two RimFire .10 (35-30-1250) outrunner brushless
Electronic Speed Control: Two 25A
Propeller: 8x8 thin electric
LiPo Battery: 3S 11.1V 3800mAh 30C
Battery Charger: For selected battery
LiPo charging bag, building and field equipment
SPECIFICATIONS
Wingspan: 47.5" (1205mm)
Length: 42.5" (1080mm)
Wing Area: 392 sq in (25.3 sq dm)
Wing Loading: 24-25 oz/sq ft (73 - 73mm g/sq dm)
Weight: 4 - 4.25lb (1810 - 1930g)
Center of Gravity (CG): 2.5" (64mm) back from leading edge of wing
measured at fuselage
Control Throws: Low High
Elevator, Up/Down: 1/4" (6mm) 14° 3/8" (9.5mm) 20°
Rudder, Right/Left: 13/16" (21mm) 23° 1-1/16" (27mm) 30°
Ailerons, Up/Down: 1/4" (6mm) 11° 7/16" (11mm) 21°
COMMENTS
Following are the Top Flite MonoKote colors and order numbers for
6' rolls;
Royal Blue, TOPQ0221 Black, TOPQ0208
Jet White, TOPQ0204 Missile Red, TOPQ201
