GPMA1818 Tori 2M EP Glider ARF

GPMA1818 Tori 2M EP Glider ARF. FEATURES
Construction: Carbon boom, fiberglass fuselage, servo tray in
fuselage is sized for the Tactic TSX5 micro servos, but may be
enlarged for other servos, pre-hinged control surfaces for easy
assembly
Wing: One-piece
Covering: High quality heat shrink film
Propeller: 12x6.5 folding
Spinner: Machined aluminum
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover component parts
damaged by use or modification.

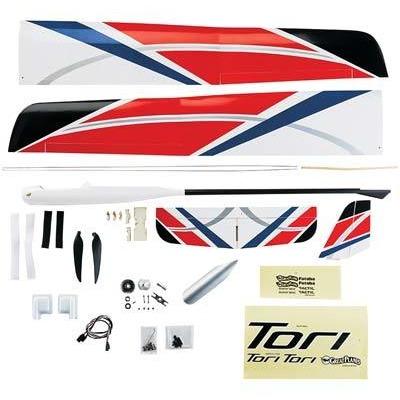

INCLUDES
Preassembled Wing, Fuselage and Tail Sections, Spinner and Folding
Prop Assembly and Instruction Manual
REQUIREMENTS
Radio: At least 4-channel
Servos: Four Tactic TSX5 micro high-speed recommended
Motor: Great Planes Rimfire .10 Outrunner 35-30-1250 outrunner
ESC: 40A
Battery: 2S 2200mAh OR 3S 1800mAh LiPo
Battery Charger: Compatible with selected battery
Building and field equipment
SPECIFICATIONS
Wingspan: 78.5" (1995mm)
Length: 42" (1065mm)
Wing Area: 498 sq in (32.1 sq dm)
Wing Loading: 8.4 - 9.0 oz sq/ft (25.6 - 27.5g sq dm)
Weight: 29-31oz (822-879g)
Center of Gravity: 2 - 3" (50 - 75mm) back from leading edge of wing
approximatey where it meets the fuselage
Control Throws; Low Rate High Rate
Elevator, up & down: 5/16" (8mm) 15° 1/2" (13mm) 25°
Rudder, right & left: 3/4" (19mm) 20° 1" (25mm) 28°
Ailerons, Low Rate up 3/8" (10mm) 19°, down 1/4" (6mm) 13°
High Rate up 5/8" (16mm) 33°, down 3/8" (10mm) 19°
