GPMA1819 Tori 2M EP Glider Rx-R

GPMA1819 Tori 2M EP Glider Rx-R. FEATURES
Construction: Carbon boom, fiberglass fuselage, servo tray in
fuselage is sized for the Tactic TSX5 micro servos (included), but
may be enlarged for other servos, pre-hinged control surfaces for
easy assembly
Wing: One-piece
Brushless Motor: Great Planes RimFire .10 35-30-1250 Outrunner
Electronic Speed Control: Great Planes Programmable 40A
Servos: Four Tactic TSX5 micro high-speed
Covering: High quality heat shrink film
Propeller: 12x6.5 folding
Spinner: Machined aluminum
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover component parts
damaged by use or modification.

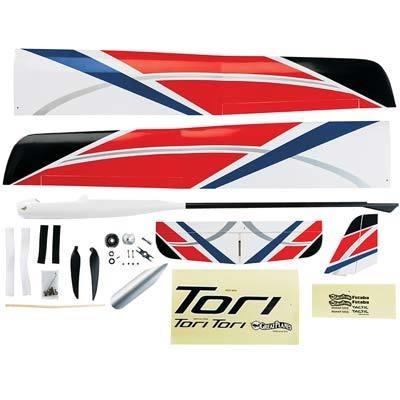

INCLUDES
Preassembled Wing, Fuselage and Tail Sections, Spinner and Folding
Prop Assembly, Motor, ESC, four Servos and Instruction Manual
REQUIREMENTS
Radio System: At least 4-channel, Tactic TTX660 6-ch TX, TR625 6-ch
receiver recommended
Battery: 2S 2200mAh OR 3S 1800mAh LiPo
Battery Charger: Compatible with selected battery
Building and field equipment
SPECIFICATIONS
Wingspan: 78.5" (1995mm)
Length: 42" (1065mm)
Wing Area: 498 sq in (32.1 sq dm)
Wing Loading: 8.4 - 9.0 oz sq/ft (25.6 - 27.5g sq dm)
Weight: 29-31oz (822-879g)
Center of Gravity: 2 - 3" (50 - 75mm) back from leading edge of wing
approximatey where it meets the fuselage
Control Throws; Low Rate High Rate
Elevator, up & down: 5/16" (8mm) 15° 1/2" (13mm) 25°
Rudder, right & left: 3/4" (19mm) 20° 1" (25mm) 28°
Ailerons, Low Rate up 3/8" (10mm) 19°, down 1/4" (6mm) 13°
High Rate up 5/8" (16mm) 33°, down 3/8" (10mm) 19°
