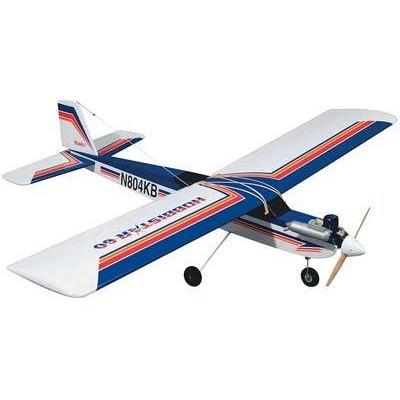

HCAA2125 Hobbistar 60 MkIII GP ARF .61,71"
Regular price
$199.99 USD
Regular price
$199.99 USD
Sale price
$199.99 USD
Unit price
per
Couldn't load pickup availability
HCAA2125 Hobbistar 60 MkIII GP ARF .61,71". This is a 90% Prebuilt, Radio Controlled, Glow Powered, Almost-Ready-to-Fly,
Hobbico Hobbistar 60 MKIII .60 Sport Scale All-Wood Airplane.
For Beginner Modeler/Fliers.
FEATURES
Construction: All balsa and plywood
Wings: Two halves join to make a one-piece, all-wood wing
Huge 71" wingspan improves stabilty and visibility.
Covering: Factory applied adhesive backed (not carried separately)
Colors are Blue and White with Red and Orange stripes.
Radio Compartment: Plywood reinforced, located under the wing.
Landing Gear: Wire tricycle style.
Single Aileron Servo: Mounted in the center of the wing.
Complete hardware package with spinner, wheels, and engine mount.
Building Time: Ready to fly in only 15 - 20 hours.
Warranty Period: 90-days covering defects or workmanship.
INCLUDES

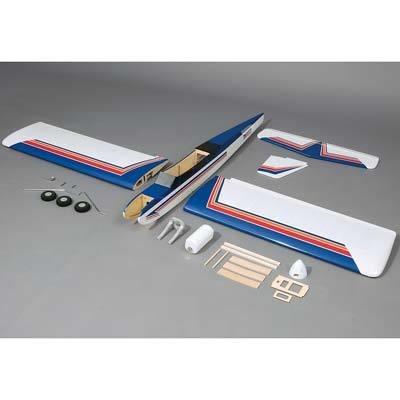

Pre-built and covered wings, fuselage and tail assemblies, pushrods,
pre-bent 3/16" main landing gear, 3/16" nose gear wire,
2.75" wheels, metal one-piece engine mount with mounting straps,
14 oz (420cc) fuel tank, 2-3/4" spinner, wood servo trays and
wing joiners, hardware package and photo-illustrated instructions.
REQUIREMENTS
Engine: .61 (10cc) (2-stroke) or .91 (15cc) (4-stroke)
Muffler: Standard (Engine mounts in an upright position)
Radio: 4 Channel
Servos: 4 Standard (1-Aileron, 1-Elevator, 1-Throttle, 1-Rudder)
Servo Extension 6": 1 (Futaba radios usually include this)
Misc. Items: Glow plug, 1/4" foam rubber padding, medium fuel tubing,
fuel filter, propeller, building, and field equipment.
SPECIFICATIONS
Wingspan: 71" (1805mm)
Wing Area: 888" (57 dm2)
Wing Chord: 12.5"
Weight: 7-8lb (3175-3629g)
Wing Loading: 18-21 oz/sq ft (55-64 g/dm2)
Length: 55" (1400mm)
Width- 3 3/8"
Airfoil: Semi-Symmetrical, High-Wing
Center of Gravity: 3" Back from the wing's leading edge
at the fuselage sides.
Control Throws-
Ailerons: Up & Down 3/8" (11mm)
Elevator: Up & Down 1/2" (13mm)
Rudder: Right & Left 1" (26mm)
COMMENTS
If a replacement fuel tank is needed, order the Sullivan 14oz
tank (SULQ1742), or the DuBro 14oz tank (DUBQ0214).
Some minor trimming and modifications may be required.
Hobbico Hobbistar 60 MKIII .60 Sport Scale All-Wood Airplane.
For Beginner Modeler/Fliers.
FEATURES
Construction: All balsa and plywood
Wings: Two halves join to make a one-piece, all-wood wing
Huge 71" wingspan improves stabilty and visibility.
Covering: Factory applied adhesive backed (not carried separately)
Colors are Blue and White with Red and Orange stripes.
Radio Compartment: Plywood reinforced, located under the wing.
Landing Gear: Wire tricycle style.
Single Aileron Servo: Mounted in the center of the wing.
Complete hardware package with spinner, wheels, and engine mount.
Building Time: Ready to fly in only 15 - 20 hours.
Warranty Period: 90-days covering defects or workmanship.
INCLUDES
Pre-built and covered wings, fuselage and tail assemblies, pushrods,
pre-bent 3/16" main landing gear, 3/16" nose gear wire,
2.75" wheels, metal one-piece engine mount with mounting straps,
14 oz (420cc) fuel tank, 2-3/4" spinner, wood servo trays and
wing joiners, hardware package and photo-illustrated instructions.
REQUIREMENTS
Engine: .61 (10cc) (2-stroke) or .91 (15cc) (4-stroke)
Muffler: Standard (Engine mounts in an upright position)
Radio: 4 Channel
Servos: 4 Standard (1-Aileron, 1-Elevator, 1-Throttle, 1-Rudder)
Servo Extension 6": 1 (Futaba radios usually include this)
Misc. Items: Glow plug, 1/4" foam rubber padding, medium fuel tubing,
fuel filter, propeller, building, and field equipment.
SPECIFICATIONS
Wingspan: 71" (1805mm)
Wing Area: 888" (57 dm2)
Wing Chord: 12.5"
Weight: 7-8lb (3175-3629g)
Wing Loading: 18-21 oz/sq ft (55-64 g/dm2)
Length: 55" (1400mm)
Width- 3 3/8"
Airfoil: Semi-Symmetrical, High-Wing
Center of Gravity: 3" Back from the wing's leading edge
at the fuselage sides.
Control Throws-
Ailerons: Up & Down 3/8" (11mm)
Elevator: Up & Down 1/2" (13mm)
Rudder: Right & Left 1" (26mm)
COMMENTS
If a replacement fuel tank is needed, order the Sullivan 14oz
tank (SULQ1742), or the DuBro 14oz tank (DUBQ0214).
Some minor trimming and modifications may be required.
