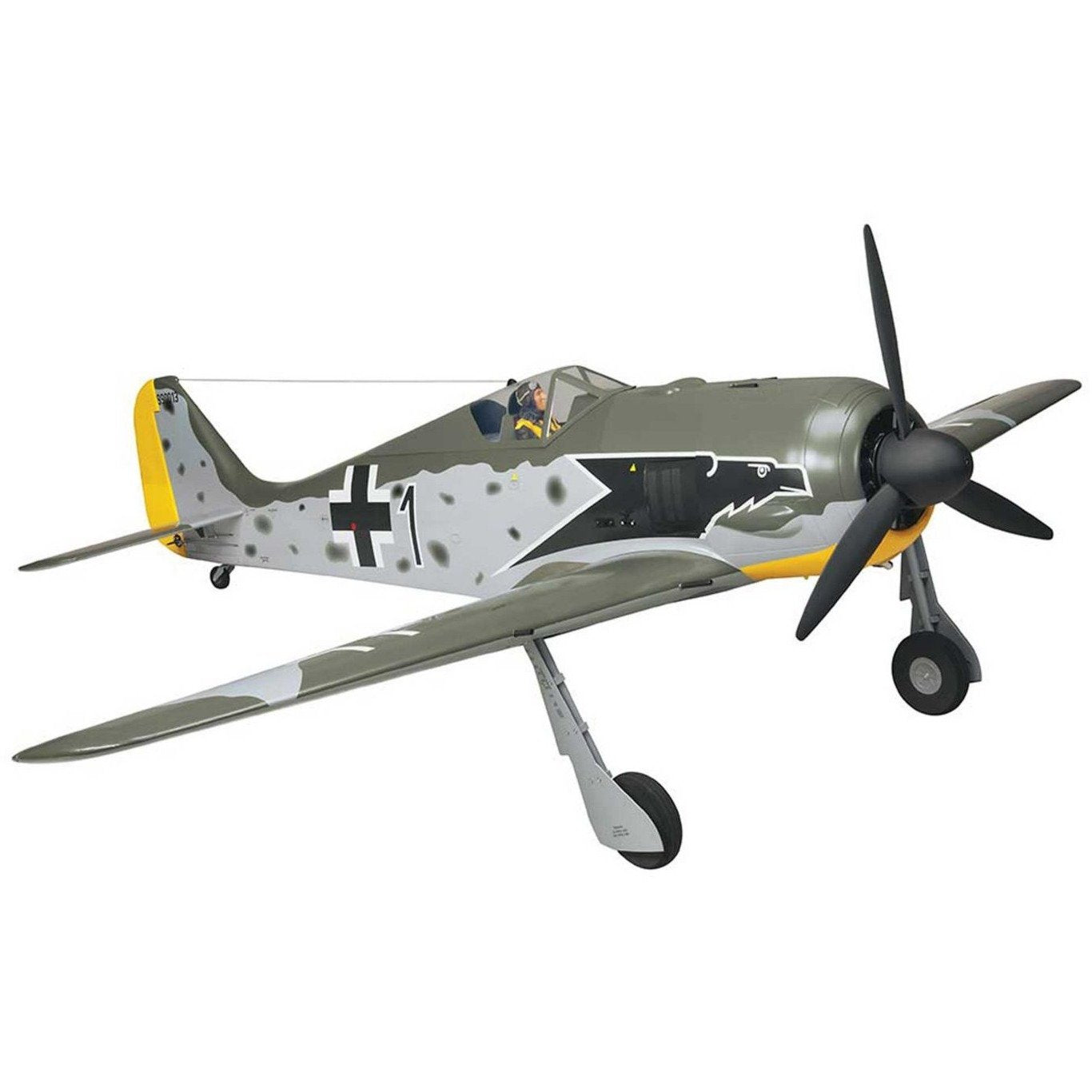

TOPA0706 Giant FW-190 ARF

TOPA0706 Giant FW-190 ARF. Overview
Few fighter planes have ever been as agile as the Focke-Wulf Fw 190. Along with the Messerschmitt Bf 109, the Fw 190 formed the foundation of Luftwaffe air defense in World War II. Early prototypes proved the Focke-Wulf could hold its own against Allied aircraft like the P-47 Thunderbolt and the Spitfire. The Fw 190's blistering performance and multi-role versatility (including high-altitude interceptor and night fighter) made it one of the most important fighters of its time. Top Flite reproduces this Luftwaffe legend in a Giant Scale ARF that's packed with realism. Features
Construction: Balsa and ply
Wings: Two-piece balsa and ply
Covering: Top Flite Monokote
Aileron Control: Dual servo
Cowl: Painted fiberglass with molded exhaust ports and plastic radial engine detail
Fuel Tank: Approximately 24.5oz (725ml)
Spinner: Aluminum 4" (102mm) diameter
Wheels: 5" (127mm) foam main wheels, 1.5" (38mm) tailwheel, fiberglass tailwheel cover
Needed to Complete
Radio: 7-8 ch, 8-ch or more highly recommended for best performance
Servos;
Elevators: 2 (min. 50oz-in torque)
Rudder: 1 (min. 50oz-in torque)
Ailerons: 2 (min. 50oz-in torque)
Flaps: 2 (min. 50oz-in torque)
Tail Steering: 1 (min. 50oz-in torque)
Tail Gear Retract: 1 (min. 50oz-in torque)
Throttle: 1 (standard)
Retract: 1 (micro)
Optional Choke: 1 (standard)
Y-Harness: Four 6" for elevator, rudder/steering, alierons and flaps
12" Extension: Two for flaps
24" Extension: Two for ailerons
Heavy Duty Switch Harness: Two
Receiver Battery: 4.8V at least 2400mAh
Retracts: Pneumatic and electric main gear retracts and mechanical tail gear
Engine: 50 - 55cc gasoline only
Ignition Battery: At least 1600mAh NiMH
Propeller, Building and field equipment

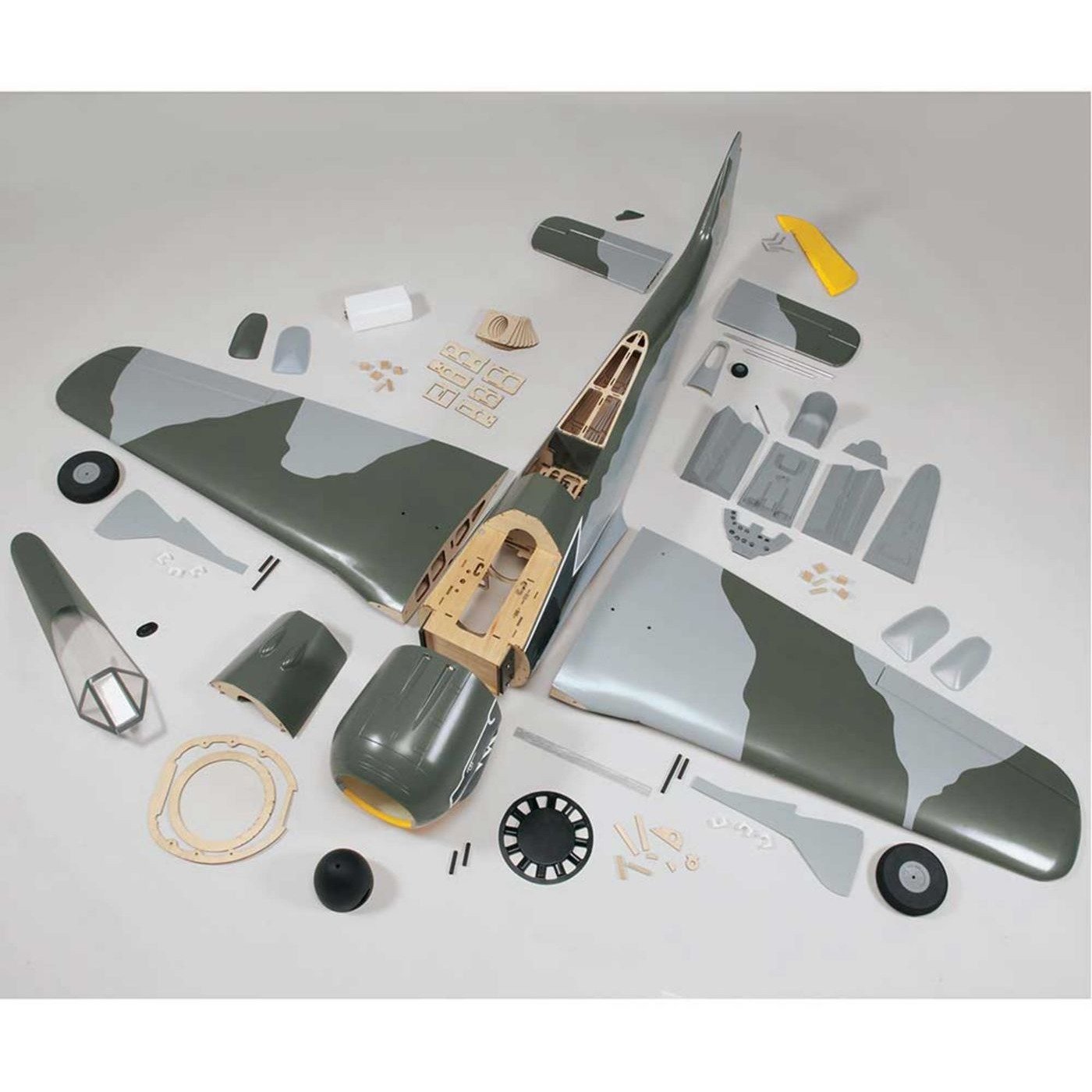

What's in the box?
Prebuilt Wing, Fuselage and Tail Sections, Fuel Tank, Spinner, Decals Cannons, Antenna Mounts, Cockpit Kit, and Main and Tail Wheels
(1) User Manual
Specifications
Wingspan: 85" (2160mm)
Wing Area: 1198 sq in (77.3 sq dm)
Weight: 22 - 24 lbs (9980 - 10880 g)
Wing Loading: 42 - 46 oz/sq ft (128 - 140 g/sq dm)
Length: 73.25" (1860mm)
Airfoil: Semi-symmetrical
Center of Gravity: 5-1/2" (139mm) back from the leading edge of the wing at the fuselage sides
Control Throws: High Rate ? / ? Low Rate
Elevator Up/Down: 7/16" (11mm) 11° 5/16" (8mm) 8°
Rudder Right/Left: 2" (51mm) 27° 1-1/2" (38mm) 19°
Ailerons Up/Down: 7/8" (22mm) 18° 5/8" (16mm) 13°
Flaps: 2" (51mm) 35°
