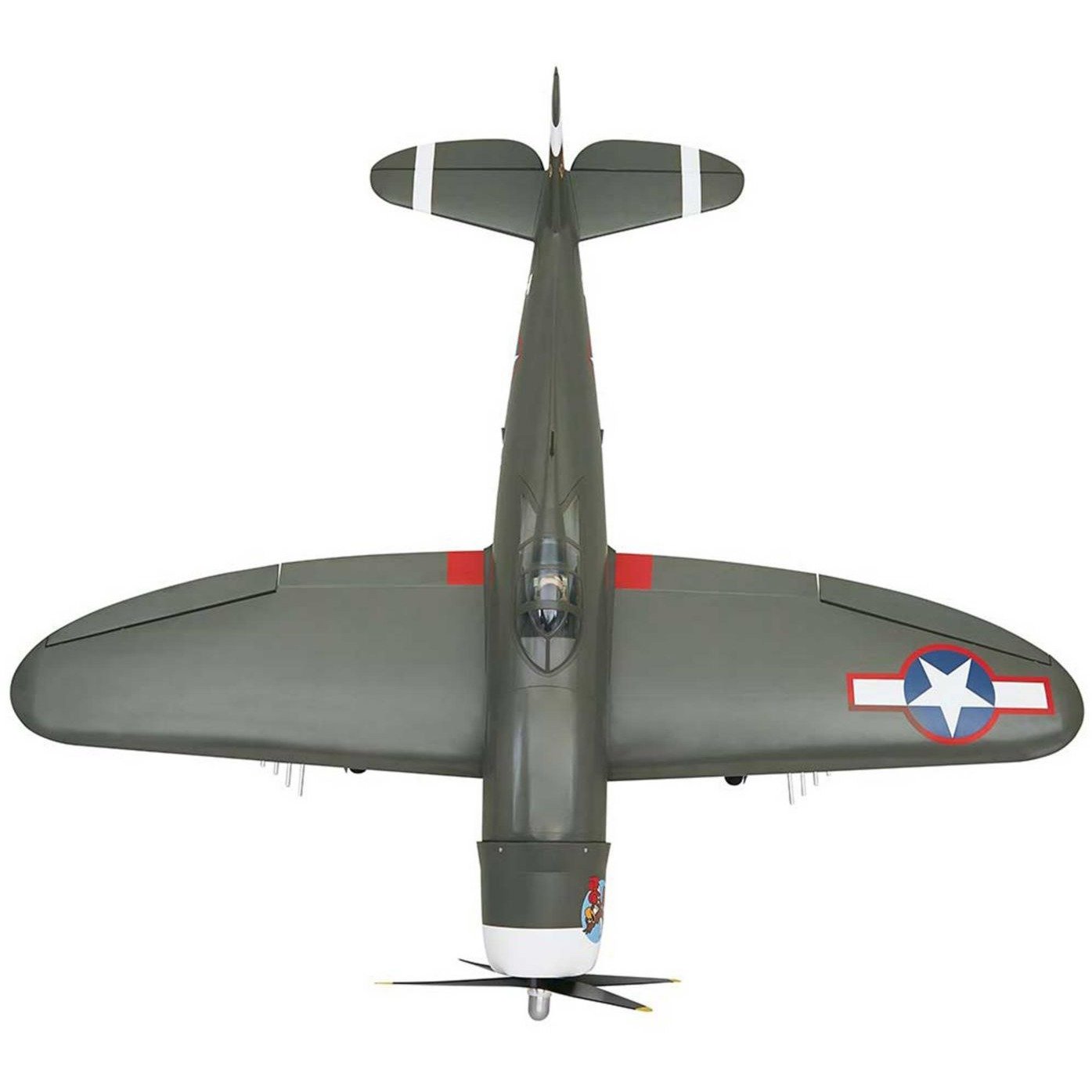

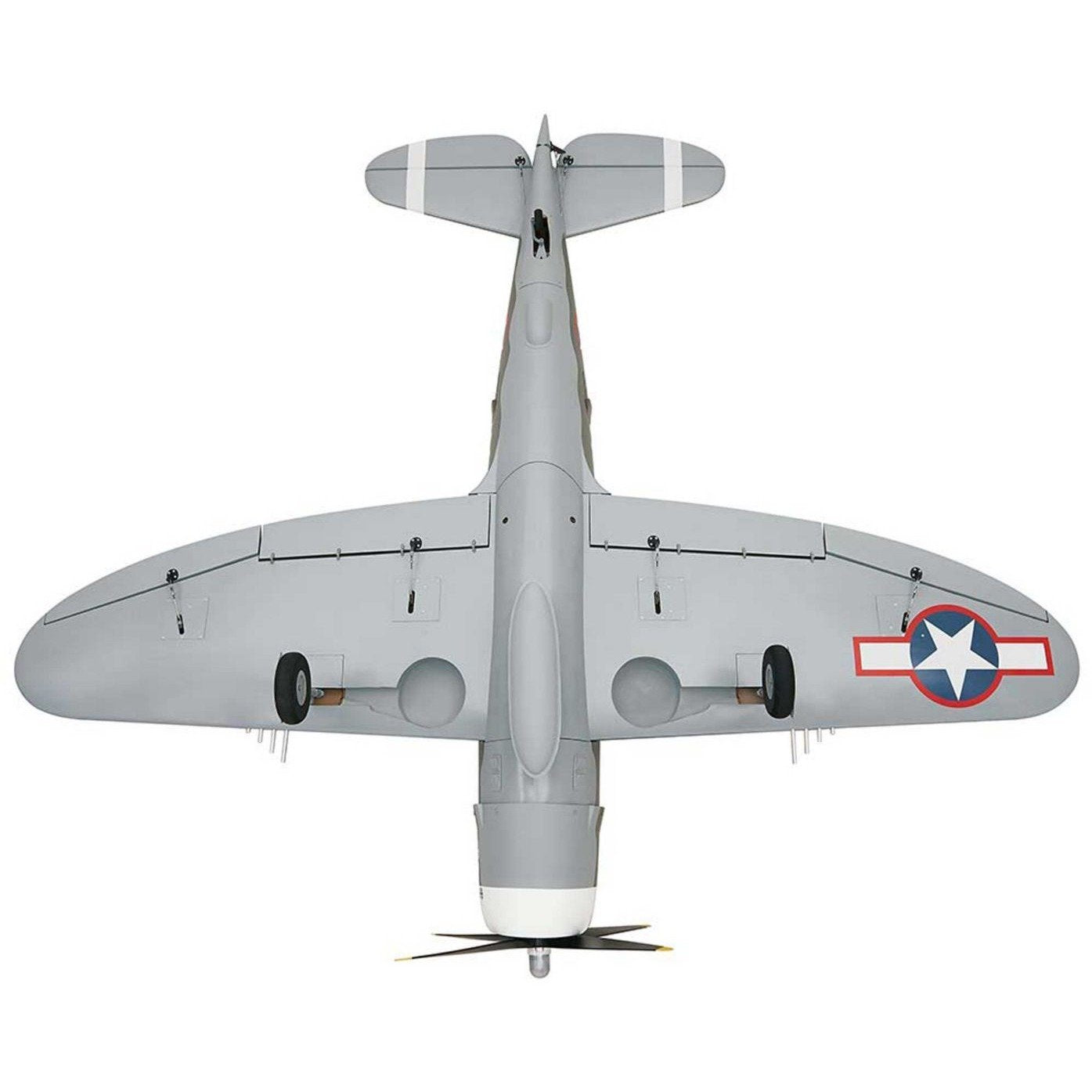

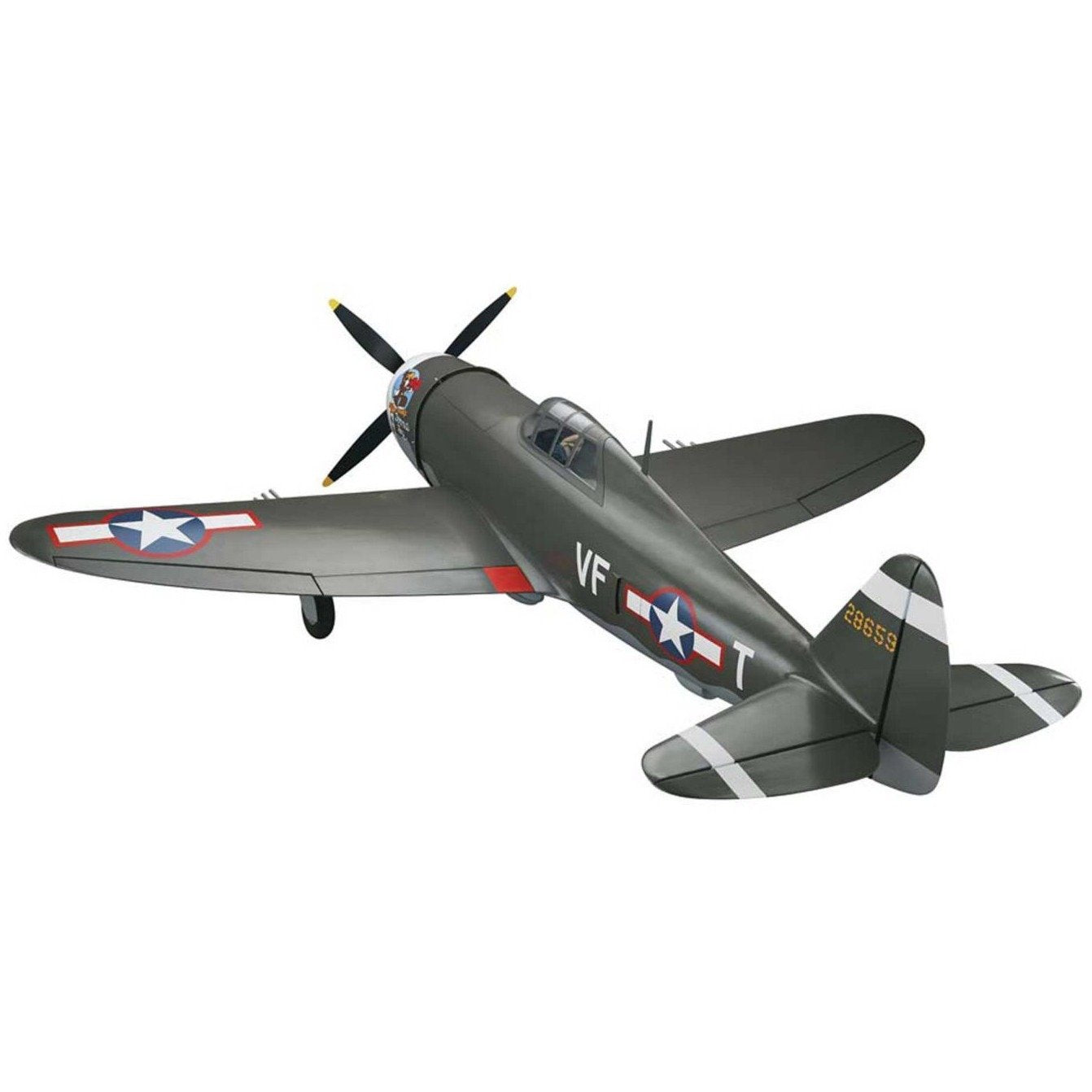

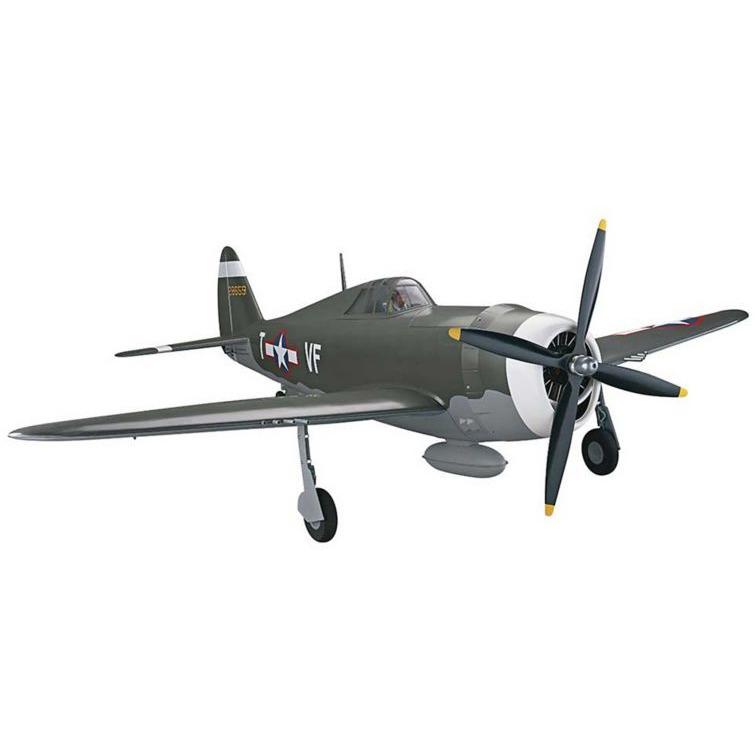

TOPA0714 Giant P-47D Razorback ARF. Overview
Effective as an escort fighter, interceptor, fighter bomber, and ground attack aircraft—the P-47 was one of the most versatile aircraft of the Second World War. Although the bubble canopies of later models would become very popular with the USAAC and later airshow crowds, it was the original models with the 'razorback' canopies that really did the heavy lifting. Heavy armor, massive firepower, and the option to install rockets and bombs made the P-47 a lethal threat to anything moving. Get yours and make a big impression on the ground and in the air today. Features
Construction: Built-up and sheeted balsa and ply
Wings: One-piece, plywood wing joiner, prehinged flaps for scale realism
Aileron Control: Dual servo
Cowl: Painted fiberglass
Covering: Top Flite MonoKote
Canopy: Clear with painted-on frame lines, recessed instrument detail, molded instrument panel, side panels, floor and seat Razorback turtle deck and canopy design for scale warbird looks **pilot shown in photos is NOT included**
Wheels: Foam, Main 5" (127mm), tailwheel 1-3/4" (44mm) diameter
Radial Engine Detail: Molded plastic, black in color (non-functional)
Fuel Tank: 6.3 x 3.1 x 2.4" (160 x 80 x 61mm), rectangular, approximately 24 oz (720cc)
Propeller Nut: Aluminum with polished finish 1.9" (48mm) diameter at base
Hatch: Quick release, attaches with magnets, covered in MonoKote
Needed to Complete
Radio: 6+channel with 11-12 servos (2-elevator, 1-rudder, 2-ailerons, 2-flaps, 1-tail wheel steering, 1-throttle, 1-retract, 1-optional choke)
6" (152mm) Y-Harness: Four
6" (152mm) Servo Extension: Four
12" (35mm) Servo Extension: Three
24" (610mm) Servo Extension: Three
Heavy Duty Switch Harness: Two
Charge Receptacle: Two
For Gasoline Power-
Engine: 50-61 cc gasoline engine (stock muffler supplied with the DLE-61 engine fits inside the cowl)
Ignition Battery: 6.6V, at least 1100mAh
For Electric Power-
Motor: 80-85-160kV, outrunner brushless motor
ESC: 160A brushless
Batteries: Two 6S 5000mAh LiPo
Battery Charger: Compatible with selected LiPo batteries, LiPo charging bag
Receiver Battery: At least 1000mAh
Retracts: Robart pneumatic or electric
Propeller depending on glow or electric power, building and field equipment
What's in the box?
(1) ARF Giant Scale P-47 Razorback Airplane with Canopy, Prop Nut, Wheels, Molded Radial Engine, Antenna, Fiberglass Cowl and Wheel Doors, Dummy Antenna, Metal Gun Barrels, Decal Sheet, and two Aluminum Stabilizer Tubes
(1) User Manual
Specifications
Wingspan: 85" (2,160mm)
Wing Area: 1329 in² (85.7 dm²)
Wing Loading: 34-37 oz/ft² (104-113 g/dm²)
Length: 75" (1905mm)
Center of Gravity (CG): 6-3/8" (162mm) back from the leading edge of the wing measured at the fuselage sides
Control Throws: High Rate ? / ? Low Rate
Elevator, up/down: 3/4" (19.1mm) 12° 1/2" (12.7mm) 8°
Rudder, right/left: 1-7/8" (47mm) 22° 1-3/8" (35mm) 16°
Ailerons, up/down: 3/4" (19.1mm) 15° 1/2" (12.7mm) 10°
Flaps, down: 2-3/8" (60mm) 34°
Effective as an escort fighter, interceptor, fighter bomber, and ground attack aircraft—the P-47 was one of the most versatile aircraft of the Second World War. Although the bubble canopies of later models would become very popular with the USAAC and later airshow crowds, it was the original models with the 'razorback' canopies that really did the heavy lifting. Heavy armor, massive firepower, and the option to install rockets and bombs made the P-47 a lethal threat to anything moving. Get yours and make a big impression on the ground and in the air today. Features
Construction: Built-up and sheeted balsa and ply
Wings: One-piece, plywood wing joiner, prehinged flaps for scale realism
Aileron Control: Dual servo
Cowl: Painted fiberglass
Covering: Top Flite MonoKote
Canopy: Clear with painted-on frame lines, recessed instrument detail, molded instrument panel, side panels, floor and seat Razorback turtle deck and canopy design for scale warbird looks **pilot shown in photos is NOT included**
Wheels: Foam, Main 5" (127mm), tailwheel 1-3/4" (44mm) diameter
Radial Engine Detail: Molded plastic, black in color (non-functional)
Fuel Tank: 6.3 x 3.1 x 2.4" (160 x 80 x 61mm), rectangular, approximately 24 oz (720cc)
Propeller Nut: Aluminum with polished finish 1.9" (48mm) diameter at base
Hatch: Quick release, attaches with magnets, covered in MonoKote
Needed to Complete
Radio: 6+channel with 11-12 servos (2-elevator, 1-rudder, 2-ailerons, 2-flaps, 1-tail wheel steering, 1-throttle, 1-retract, 1-optional choke)
6" (152mm) Y-Harness: Four
6" (152mm) Servo Extension: Four
12" (35mm) Servo Extension: Three
24" (610mm) Servo Extension: Three
Heavy Duty Switch Harness: Two
Charge Receptacle: Two
For Gasoline Power-
Engine: 50-61 cc gasoline engine (stock muffler supplied with the DLE-61 engine fits inside the cowl)
Ignition Battery: 6.6V, at least 1100mAh
For Electric Power-
Motor: 80-85-160kV, outrunner brushless motor
ESC: 160A brushless
Batteries: Two 6S 5000mAh LiPo
Battery Charger: Compatible with selected LiPo batteries, LiPo charging bag
Receiver Battery: At least 1000mAh
Retracts: Robart pneumatic or electric
Propeller depending on glow or electric power, building and field equipment
What's in the box?
(1) ARF Giant Scale P-47 Razorback Airplane with Canopy, Prop Nut, Wheels, Molded Radial Engine, Antenna, Fiberglass Cowl and Wheel Doors, Dummy Antenna, Metal Gun Barrels, Decal Sheet, and two Aluminum Stabilizer Tubes
(1) User Manual
Specifications
Wingspan: 85" (2,160mm)
Wing Area: 1329 in² (85.7 dm²)
Wing Loading: 34-37 oz/ft² (104-113 g/dm²)
Length: 75" (1905mm)
Center of Gravity (CG): 6-3/8" (162mm) back from the leading edge of the wing measured at the fuselage sides
Control Throws: High Rate ? / ? Low Rate
Elevator, up/down: 3/4" (19.1mm) 12° 1/2" (12.7mm) 8°
Rudder, right/left: 1-7/8" (47mm) 22° 1-3/8" (35mm) 16°
Ailerons, up/down: 3/4" (19.1mm) 15° 1/2" (12.7mm) 10°
Flaps, down: 2-3/8" (60mm) 34°
