TOPA0716 Giant F6F Hellcat 55-61EP AR
Regular price
$1,299.99 USD
Regular price
$1,299.99 USD
Sale price
$1,299.99 USD
Unit price
per
Couldn't load pickup availability

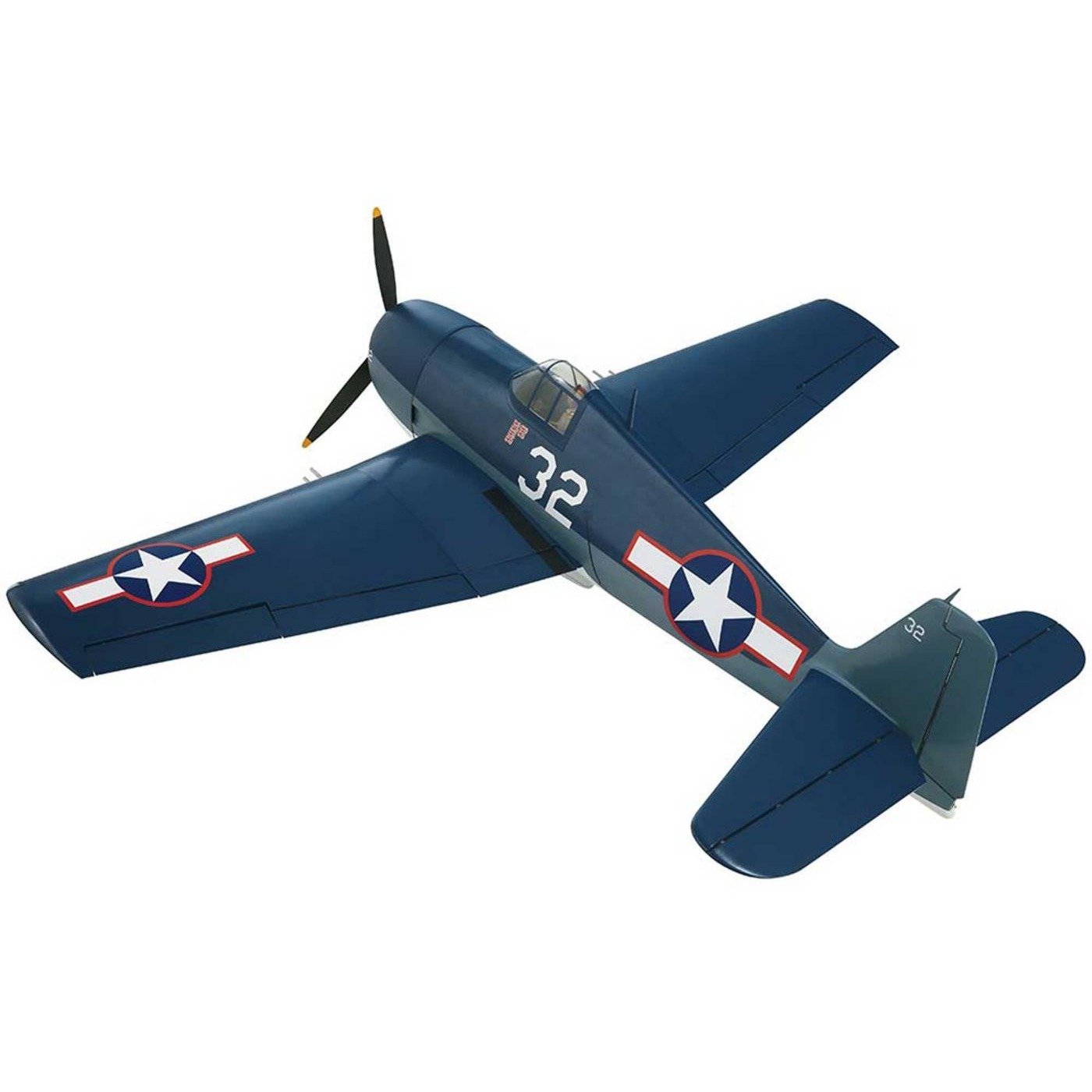

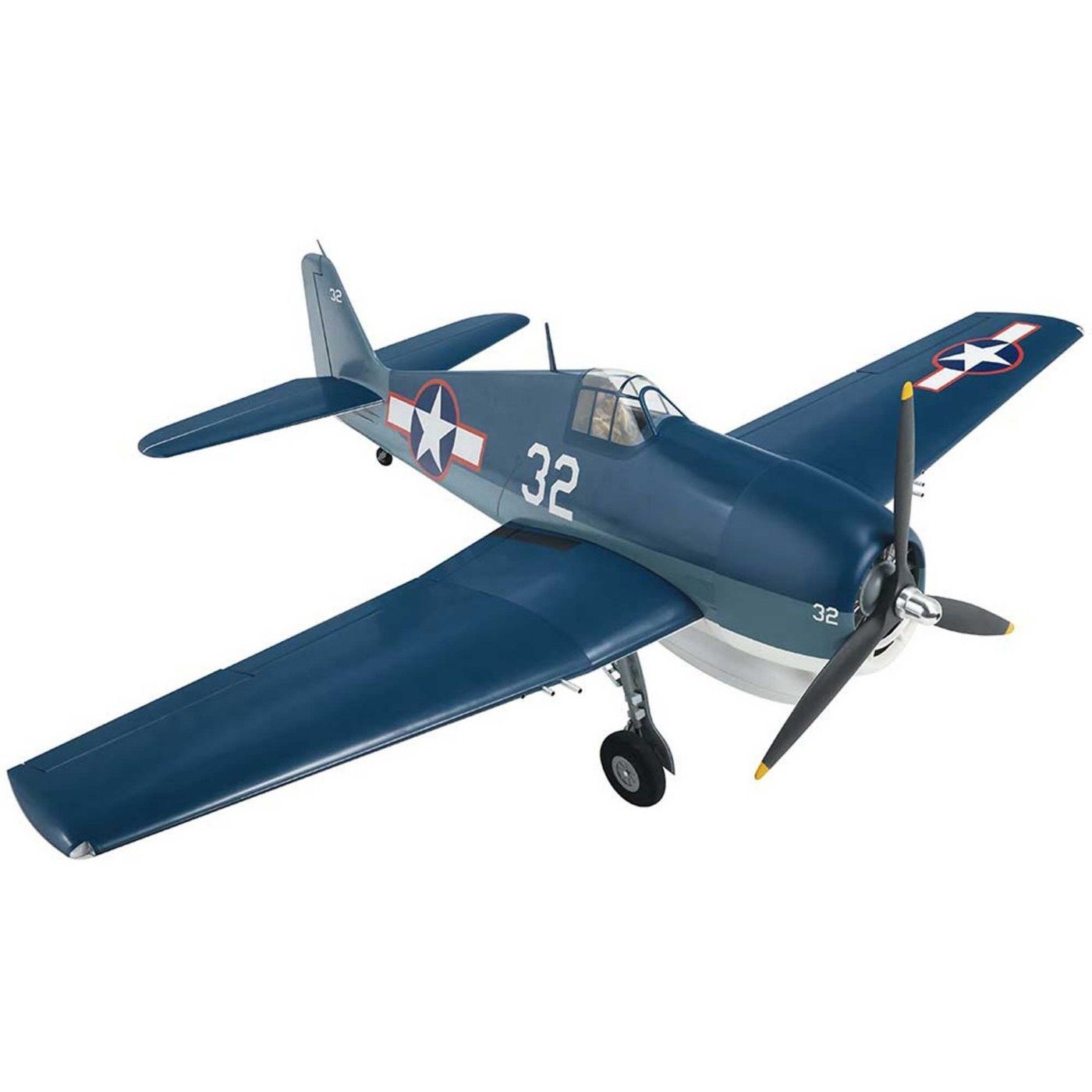

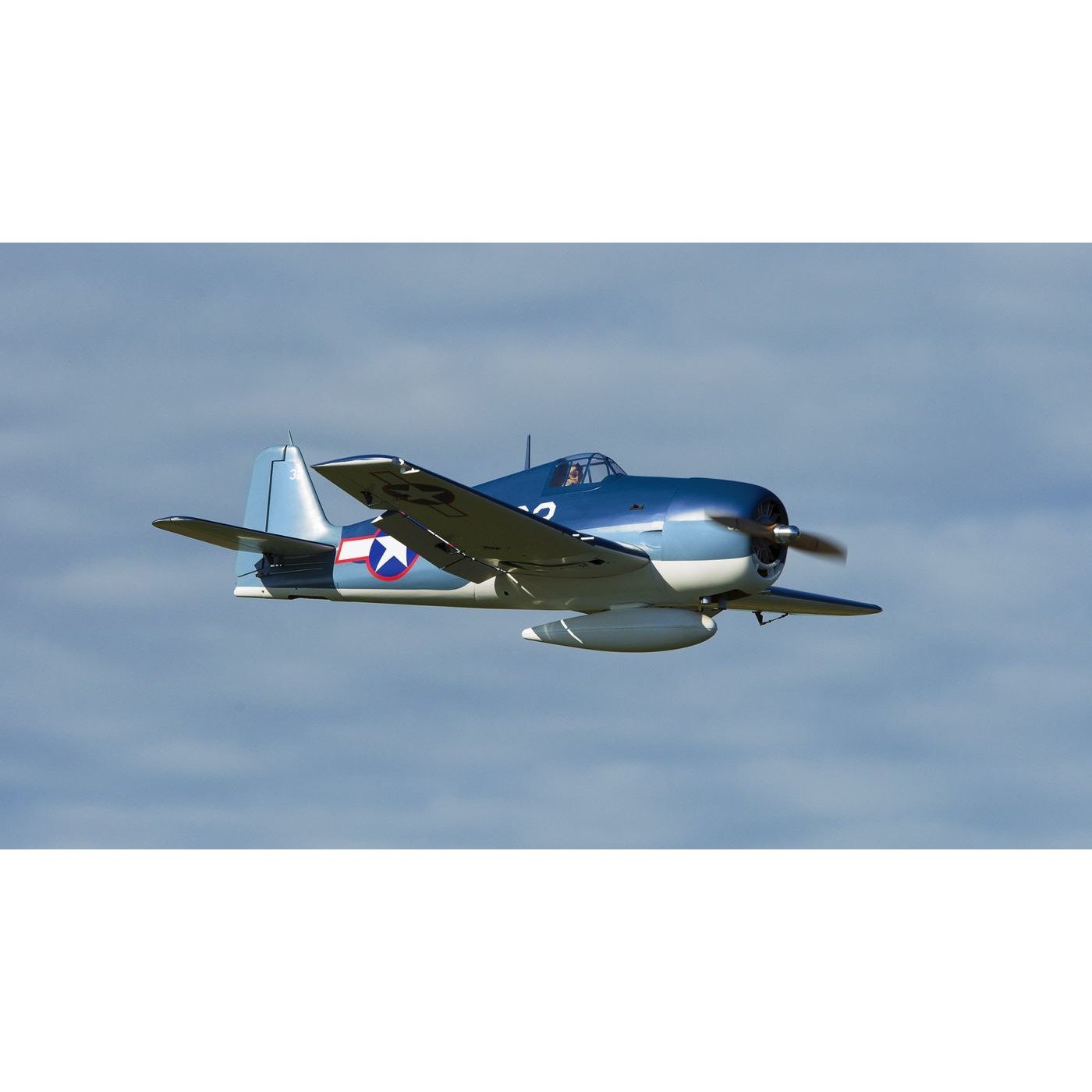

TOPA0716 Giant F6F Hellcat 55-61EP AR. Overview
Japan had hit America where it was the most vulnerable. America's battleships lay at the bottom of Pearl Harbor but the carriers were untouched. Until 1943, however, America didn't have a carrier aircraft that could match Japan's Zero. With the F6F in ’43, finally something could handily defeat the Zero. From 1944 on, Hellcats racked up kills at an ever-increasing rate. So many Zeros were sent spinning into the ocean at the Battle of the Philippine Sea that pilots dubbed it the “Great Marianas Turkey Shoot”. Our model version features includes built-up and sheeted wood airframe components, a large removable hatch, and LED lights. Fly this incredible piece of aviation history with your choice of gasoline or electric power. Features
Construction: Balsa and ply

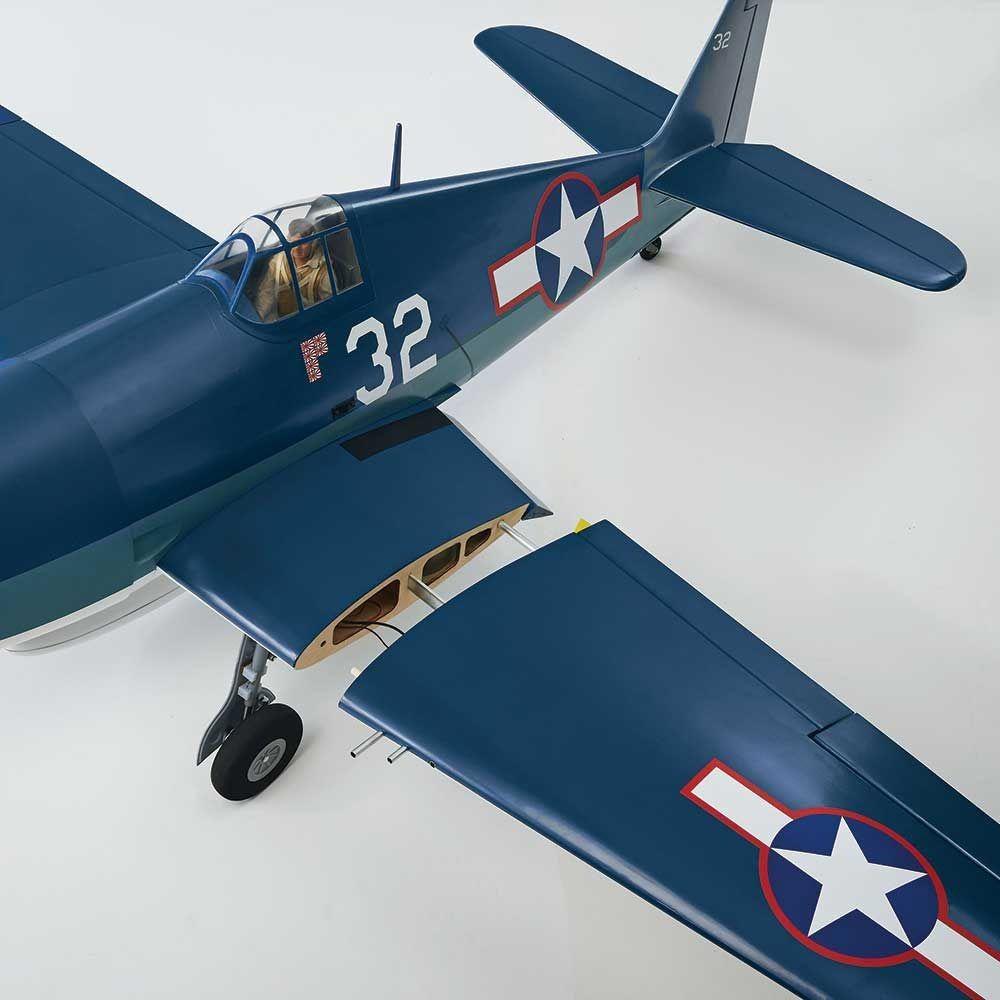

Wing: Two-piece aluminum wing tube, two LED wing tip lights
Covering: Top Flite MonoKote
Cowl: Painted fiberglass to match covering, dummy radial engne detail
Canopy: Clear plastic with painted-on frame lines
Fuel Tank:

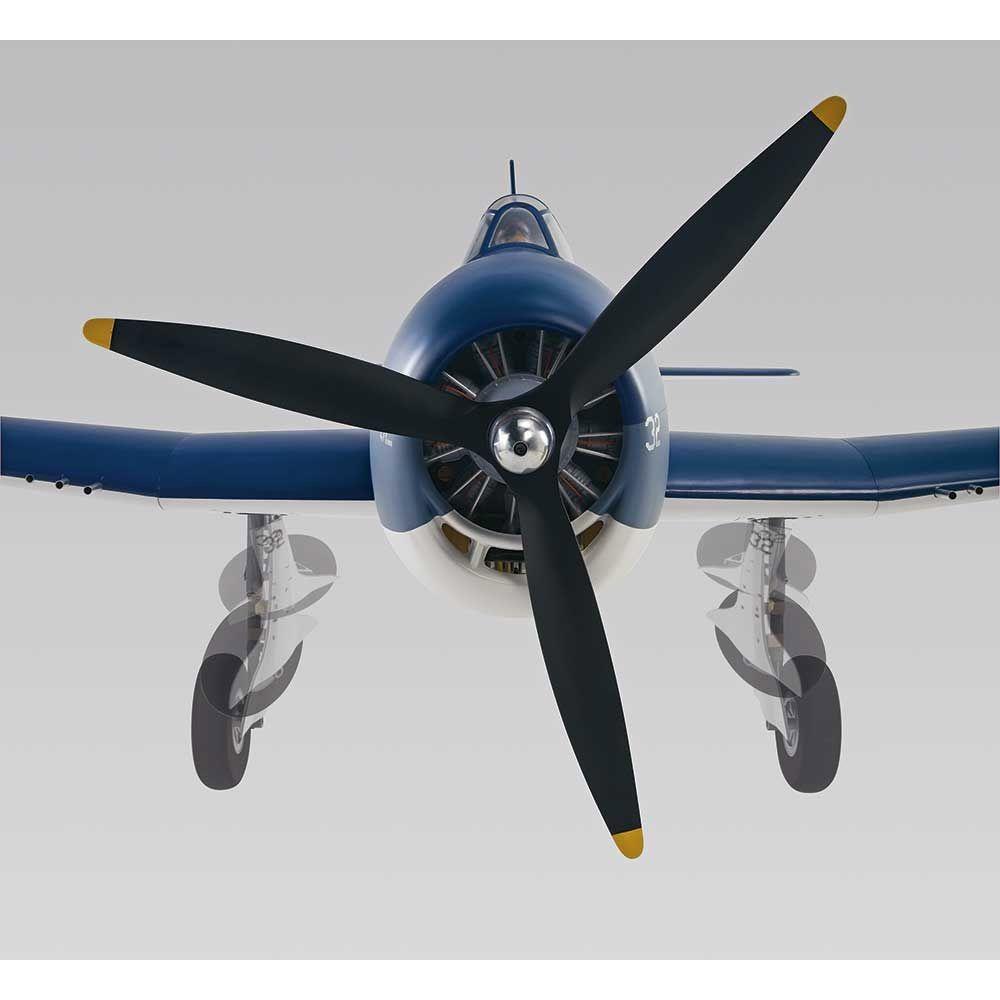

Landing Gear: Retractable, designed for Robart pneumatic and electric retracts
Needed to Complete
Radio: 7-channel minimum, 7-channel receiver for basic set up,
11-channel receiver for advanced set up, 13-channel receiver for optional drop tank, and if lights will be controlled through receiver

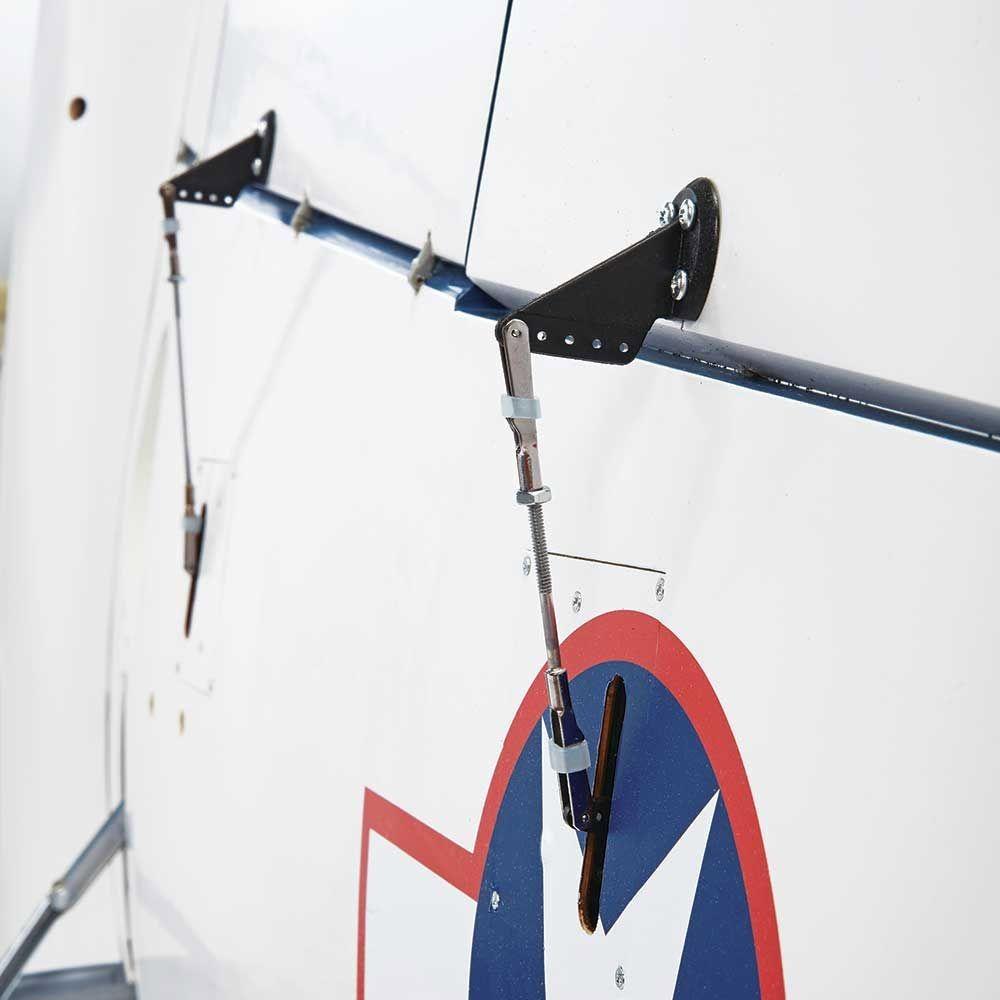

Servos: All control surfaces require metal gear servos w/at least 95 oz-in of torque (2-aileron, 2-flap, 2-elevator, 1-rudder, 1-tailwheel, 1 (40 oz-in)-throttle if using gasoline engine

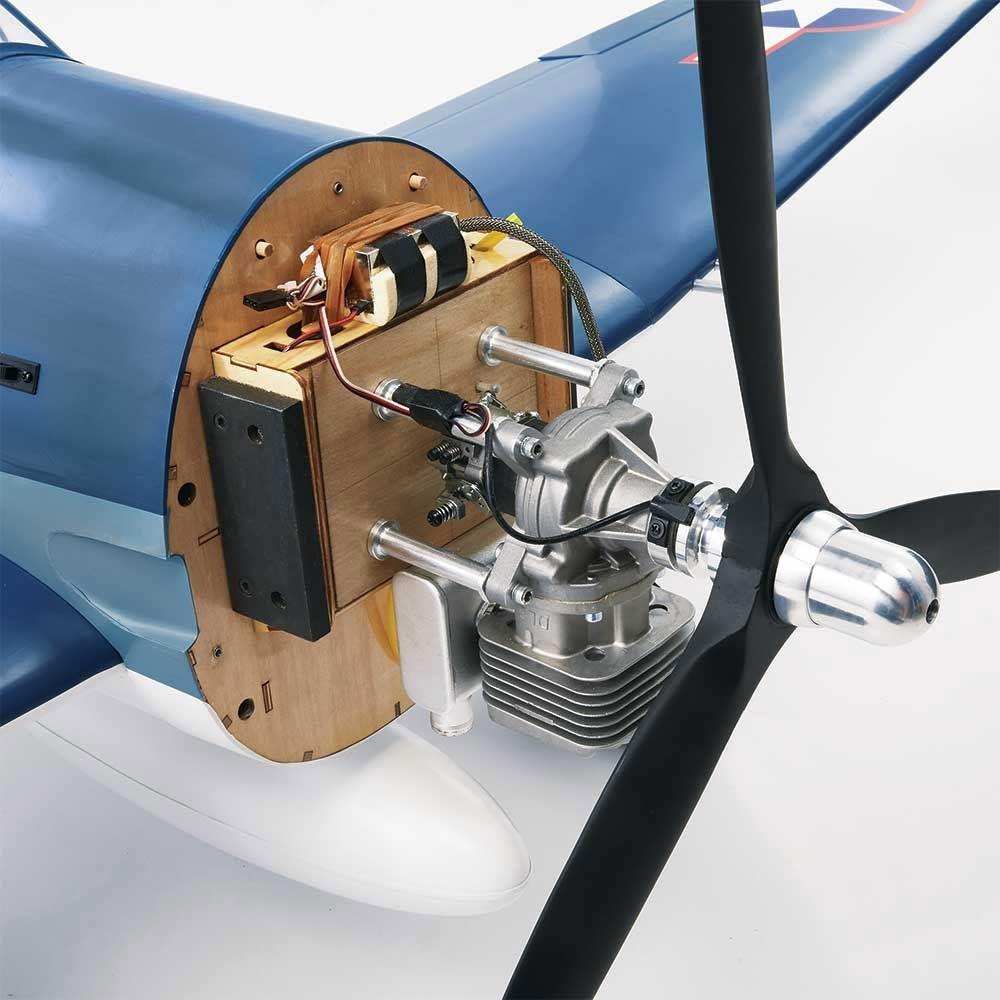

Gasoline Power; Engine:3.4 - 3.7 cu in (55 - 61cc) engine
Propeller: Compatible with selected engine

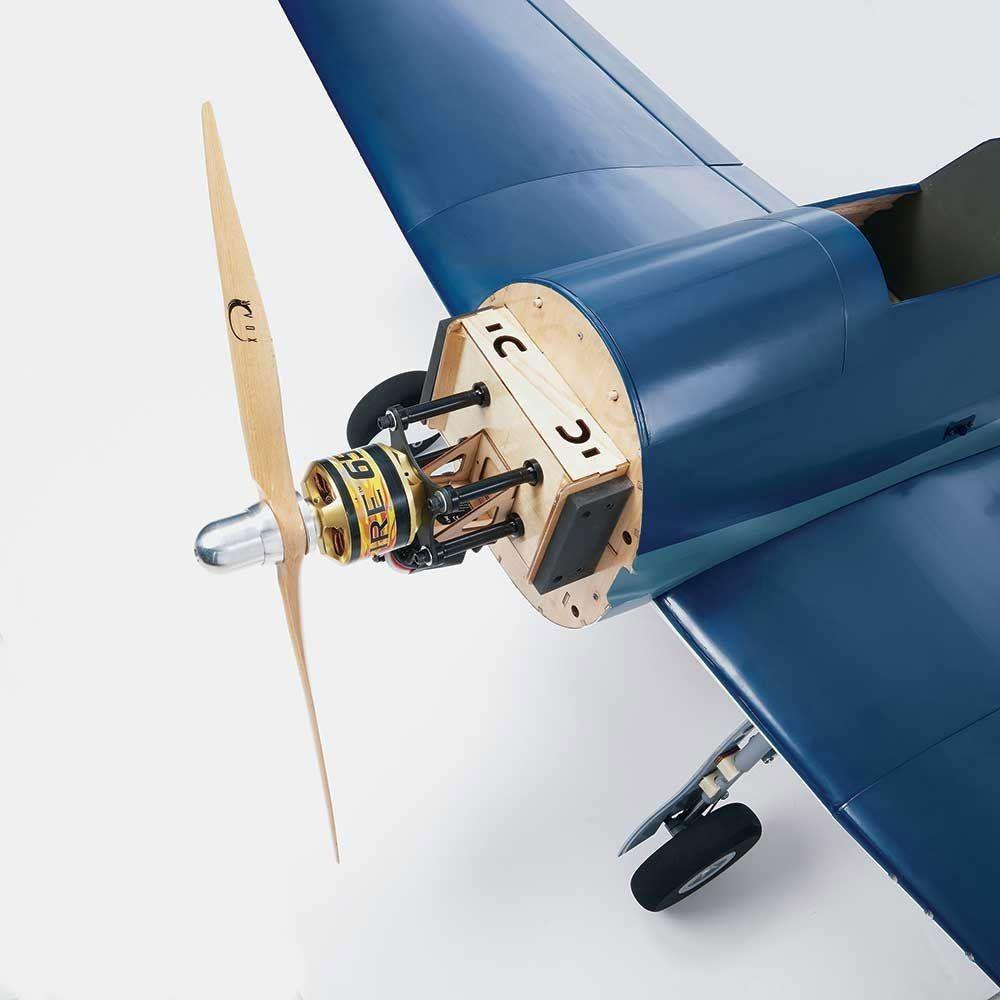

Electric Power; Motor: Rimfire .65 (80-85-160) outrunner brushless recommended
ESC: 160A high voltage if using recommended motor
Battery: 12S (2x6S) 5000 - 5500mAh
What's in the box?
(1) Giant F6F Hellcat 55-61cc Gas/EP ARF with preassembled wing, tail and fuselage components, landing gear, fuel tank, two aluminum stabilizer tubes, tail and wing lights,
(1) User Manual
Specifications
Wingspan: 86" (2184mm)
Wing Area: 1358 sq in (87.6 sq dm)
Weight: 24.7 - 27lb (11,222 - 12,247g)
Wing Loading: 42 - 46 oz/sq ft (128 - 140 g/sq dm)
Length: 66.3" (1683mm)
Center of Gravity, (CG): 6" (152mm) back from leading edge of top of wing at joint between wing center section and outer wing panels
Control Throws: Low Rate / High Rate
Elevator: 3/8" (9mm) 5° 5/8" (16mm) 9°
Rudder: 7/8" (22mm) 13° 1-1/4" (32mm) 19°
Ailerons: 3/4" (19mm) 13° 1' (25mm) 18°
Flaps: 1-5/8" (41mm) 33° down
